Navigating During an Exam

Left Panel​

Swipe left to right or tap on the Vscan Air CL probe icon on left hand top corner to access presets and menu options.

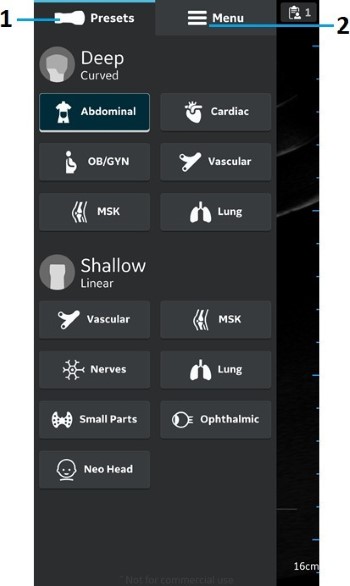

Left panel

  1. Presets
  2. Menu

See Best Preset For Body Part for more information.

Right Panel​

Swipe right to left or tap on the Patient icon on the right hand side top corner to create a new exam, access current exam and data from previously saved exams.

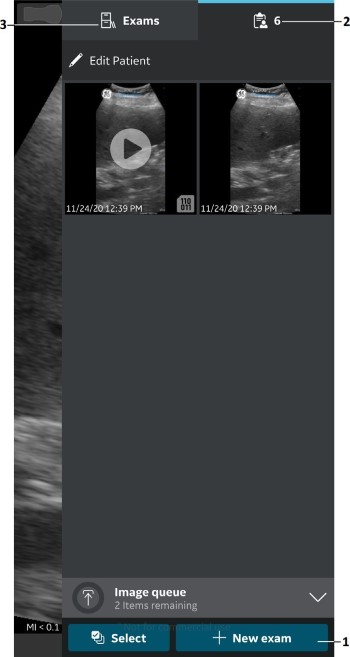

Right Panel

1. Start a new exam​

Press New Exam on right corner at the bottom of the screen to start a new exam.

2. Current exam​

Displays the current exam number

3. Previous Exams​

Displays a list of previously saved exams that can be selected to access stored images and videos.
