System Status

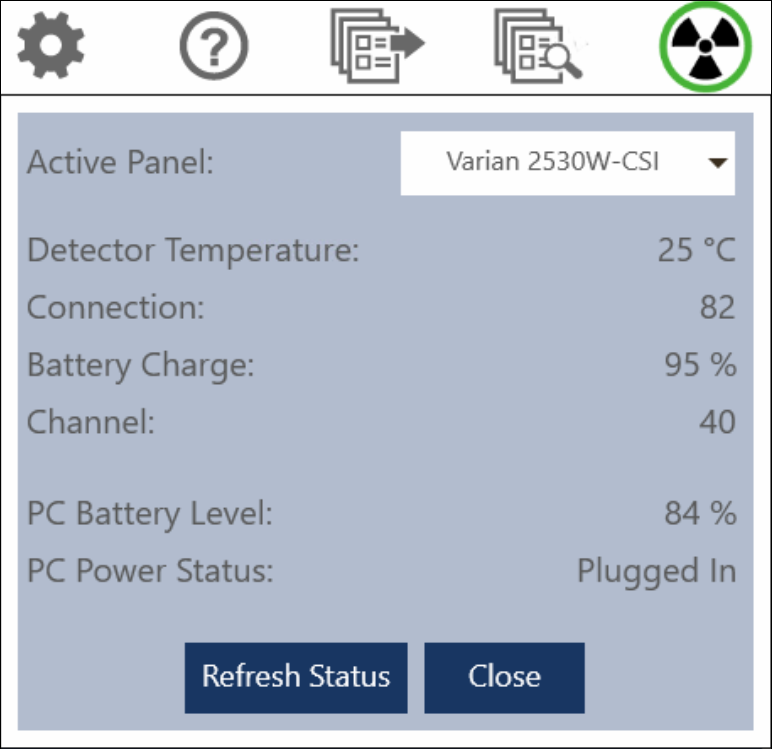

The radiation icon will give your panel's connection status at a glance but what if you want to check on the battery? Just click or tap the radiation icon. This will expand the system status dialog to give you more detailed information about your system, keep reading for more information.
Detector Status
This icon shows the current status of the Detector.
A green icon means the Detector is connected.
A red icon means the Detector is disconnected.
A pulsing green icon means that the Detector is asleep.
A spinning green icon means that the Detector is busy.
Expanding the System Status Indicator will display the Detector status as text.
Active Panel
If you have multiple detectors registered to your device you can use this dropdown to select the current active detector.
Detector Temperature
This shows the current operating temperature of the Detector.
Operating the Detector outside the optimal temperature is not advised. Detector performance and image quality may be degraded.
Connection
This shows the signal strength of your panel connection on a scale of 0-100. A higher number indicates a stronger signal.
Battery Charge
This shows the current charge of the Detector battery. Expanding the System status indicator will display the exact percentage of the current charge.
Channel
This shows which wireless channel your detector is using to broadcast.
PC Battery Level
This shows the current charge of the PC's battery, if applicable to your system.
The portable systems monitor the PC Battery level and will notify you with a popup when the PC's battery is at 40%, 30%, 25% and 15%.
PC Power Status
This will indicate if the PC is plugged into AC Power or not.
