Label Printer
Documents
| Title | |
|---|---|
| Zebra TPL 2734 Plus User Manual | |
| ZD411D Desktop Printer Quick Start Guide | |
| ZD411D Desktop Printers User Guide |
Calibration
Calibration may be needed when labels are misaligned.

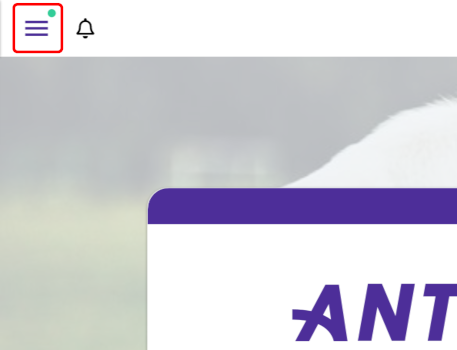

Click the Menu Icon in the left corner of the main dashboard.

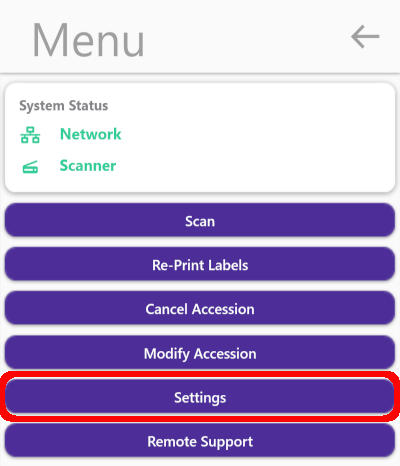

Click Settings
Select Printer, this will open the Printer Preferences window.

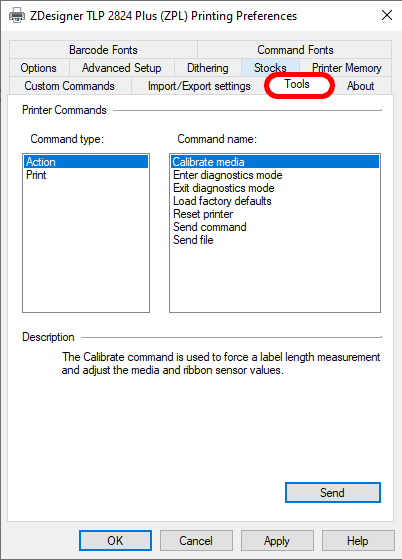

Select Tools
Under Command Type, choose Action and under Command name choose Calibrate media
Press Send. The printer will automatically begin the calibration. During calibration, printer will feed out several labels.
When calibration is complete, close the window by selection, OK or cancel on this window.
