Shot List

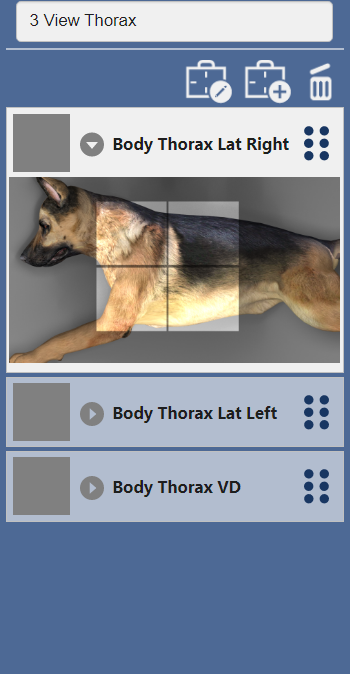

Similar to the shot list in the Shot List screen, this is the list of shots for this study. Each shot is labeled with the Region, Anatomy, and View Position of the shot. After an image has been acquired a thumbnail will be added to the shot tile to indicate that it has been acquired.
Position Assistant

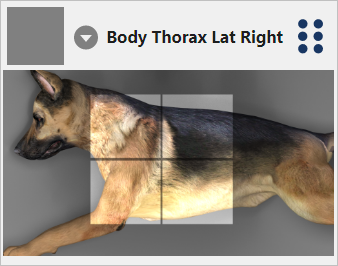

Many of the shots have a positioning assistant image. To view the image, click the Expand icon and it will slide down from the shot tile.
Duplicate Shots

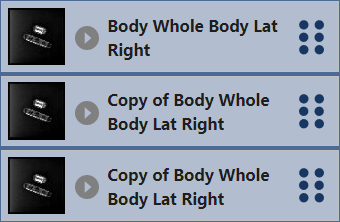

Any images duplicated using the duplicate image tool on the annotations toolbar will be prefixed with "Copy of". This only occurs in the acquire screen and not your reports.
Add Shots
You can manually add additional shots to the shot list, press the Add Shots button and the shot selection menu will slide out for you. You can also add protocols to the shot list here. When you're done just press the Next button to close the add shots sliding panel and return to the acquisition screen.
Acquisition is disabled while you are adding shots. It will be re-enabled when you finish adding shots.
Edit Shots
You can edit shots in the shot list to select a different view position. Press the Edit Shot button, this will open the shot selection panel again where you can re-designate the currently selected shot/image.
When you select a replacement, you will see a popup with both the currently selected shot's view position and the view position you have selected to replace it. You can Confirm the change by clicking the OK button or cancel the change by pressing the cancel button.
Press the Next button to close the edit shot sliding panel when you want to return to the acquisition screen.
Acquisition is disabled while you are editing shots. It will be re-enabled when you finish editing shots.
Delete Shots
You can delete the selected shot from the shot list. Select the shot you wish to delete and Press the Delete Shot button. This will remove the shot from the shot list.
Only shots that have not been acquired can be deleted. For shots that have been acquired, use the reject button.
Reordering the shot list
To change the order of the shots, simply click or touch and hold on the desired view and drag it to the desired order in the shot list.
Rejecting an image
If an image you have acquired has motion or was not positioned properly, you can reject the image with the Reject Image button. The reject button will appear when you select a shot with an image or immediately after acquisition.
When the button appears after acquisition, pressing the button will reject the image you just acquired, indicated by a red X across the thumbnail, and automatically add a replacement shot below it in the shot list. Rejected images are excluded from export.
You can Undo the rejection by selecting the rejected image and clicking the Accept Button.
Reject Reason
If the system is configured to require a reason for rejecting an image you will see the Reject Reason form when you press the Reject Image button.
When users see this popup they must select a reason from the combo box and press Save to reject the image. Press the Cancel button if you no longer wish to reject the image.
The Require Image Reject Reason setting can be found in the Settings Screen under Advanced Options.
Reject reasons can enhance the utility of the Reject Report.
