Shot List Screen
This is the Shot List Screen. This is where you build the shot list for the study. The Patient's Name and Patient Id are displayed above the shot list on the right of the screen.
Building the Shot List
To build a shot list simply touch the desired Region, Anatomy, and View.
If you find that you have added a shot in error. Simply select it in the shot list, and press the delete button.
Continue adding shots to the shot list until you have all of the desired shots in the order that you would like.
Shots that have already had their images acquired may not be deleted. The button will be disabled for those shots.
The icon with multiple trash cans on it will delete all shots without acquired images. Use carefully.
Pressing the Next Button will take you the Acquire Review Screen.
Pressing the Back Button will take you back to the Main Patient Screen.
Reordering the Shot list
To change the order of the shots, simply touch or click and hold on the right side of the desired view and drag it to the desired order in the shot list.
Protocols
Protocols are collections of shots that can be added to a study all at once. To add a protocol to the study, simply press the protocol. All the shots of the protocol will be added to the shot list.
Only protocols for the patient's species will be displayed.
Default Protocols
SmartDR Fusion comes pre-installed with two protocols.
- PennHIP Protocol for Canine patients.
- Keeneland Racing Age Protocol for Equine patients: Minimum required views for racing age patients.
- Keeneland Non-Racing Age Protocol for Equine patients: Minimum required views for non-racing age patients.
Custom Protocols
If the shot list you have created is frequently taken, you can save the shot list as a Protocol by touching the Save icon located above the shot list.
Then just give it a name and press Save
A more advanced protocol editor is available in the Acq Profiles Section of the Settings Screen.
Position Assistant

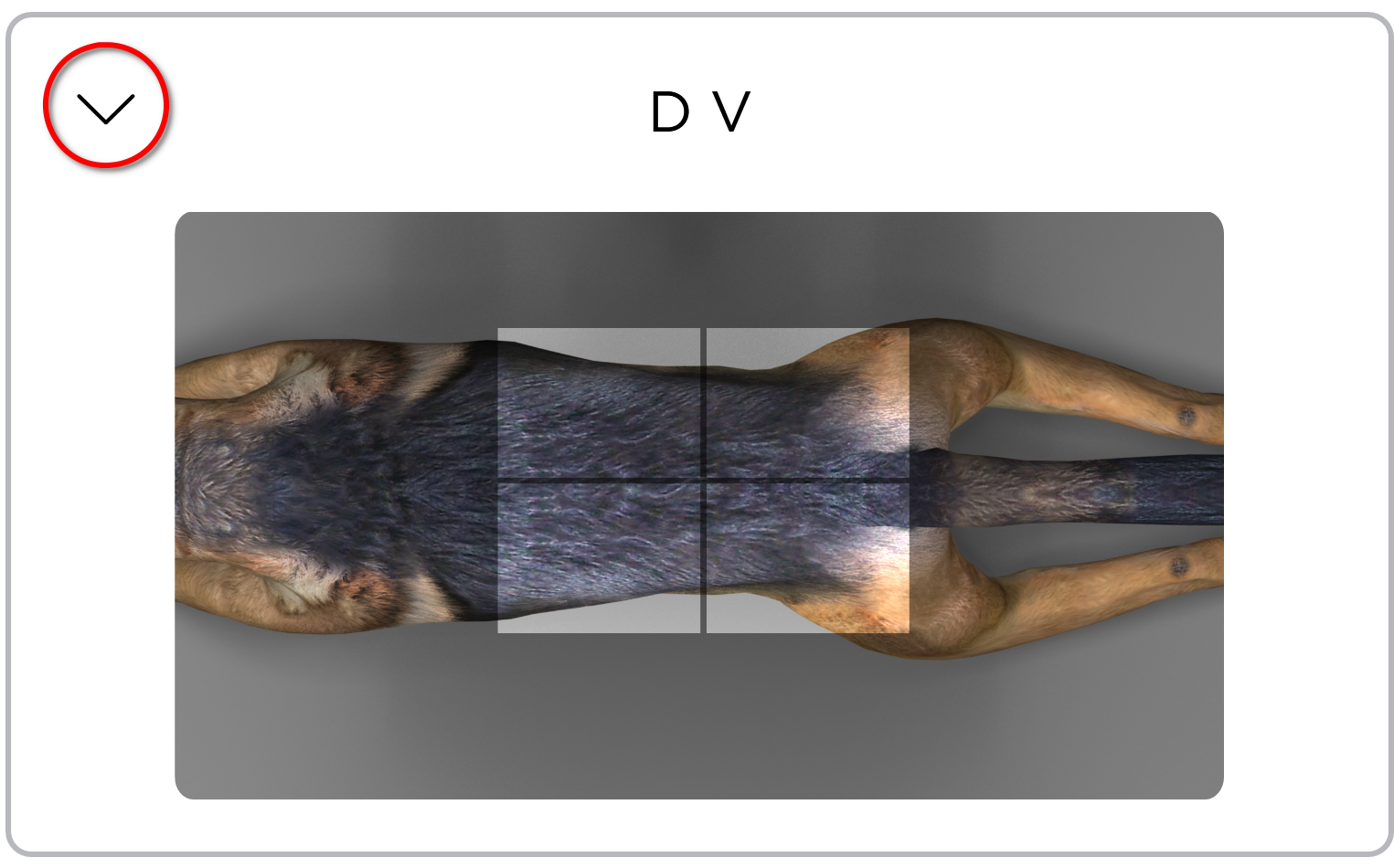

Many of the shots have a positioning assistant image. To view the image, click the Expand Icon to see it.

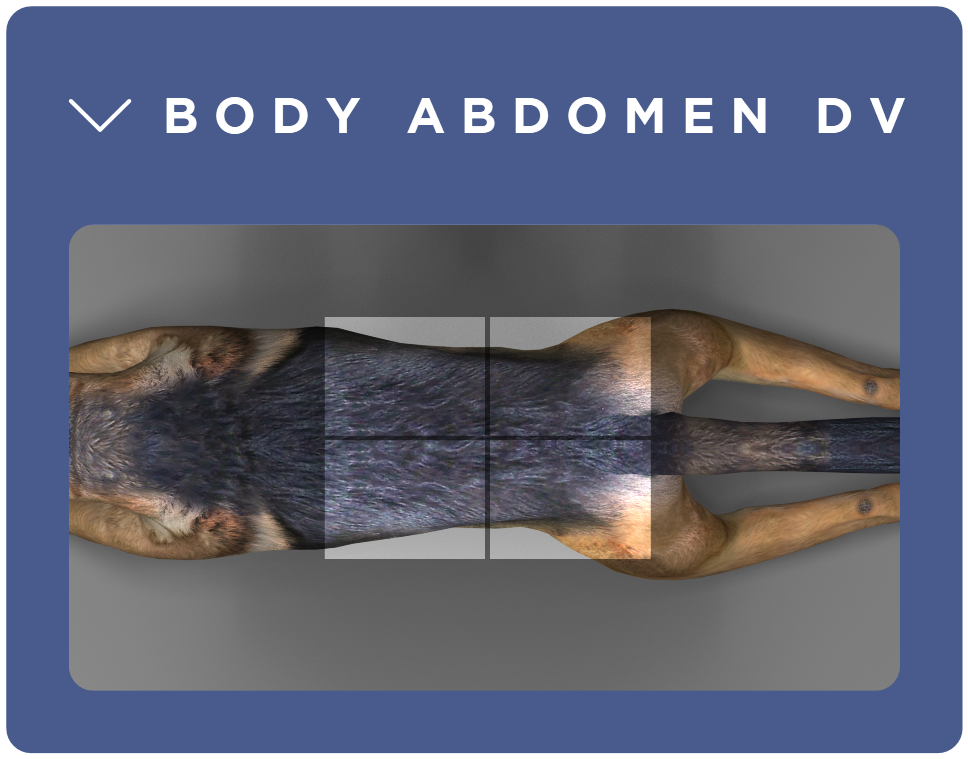

This can also be done with shots already add to the Shot List.
Study Description
You can enter a Study Description. If you do not provide one, the software will automatically generate one for you.
If you have added a protocol to the shot list, the name of first protocol added will be used for the study description. If no protocols have been added, the Anatomy of the first shot in the shot list will be used for the study description.
The study description is used for the Study Description DICOM Tag (0008,1030) when the study is exported as DICOM.
Automatic Study Descriptions can be turned off in the Intermediate Options.
