Settings Screen

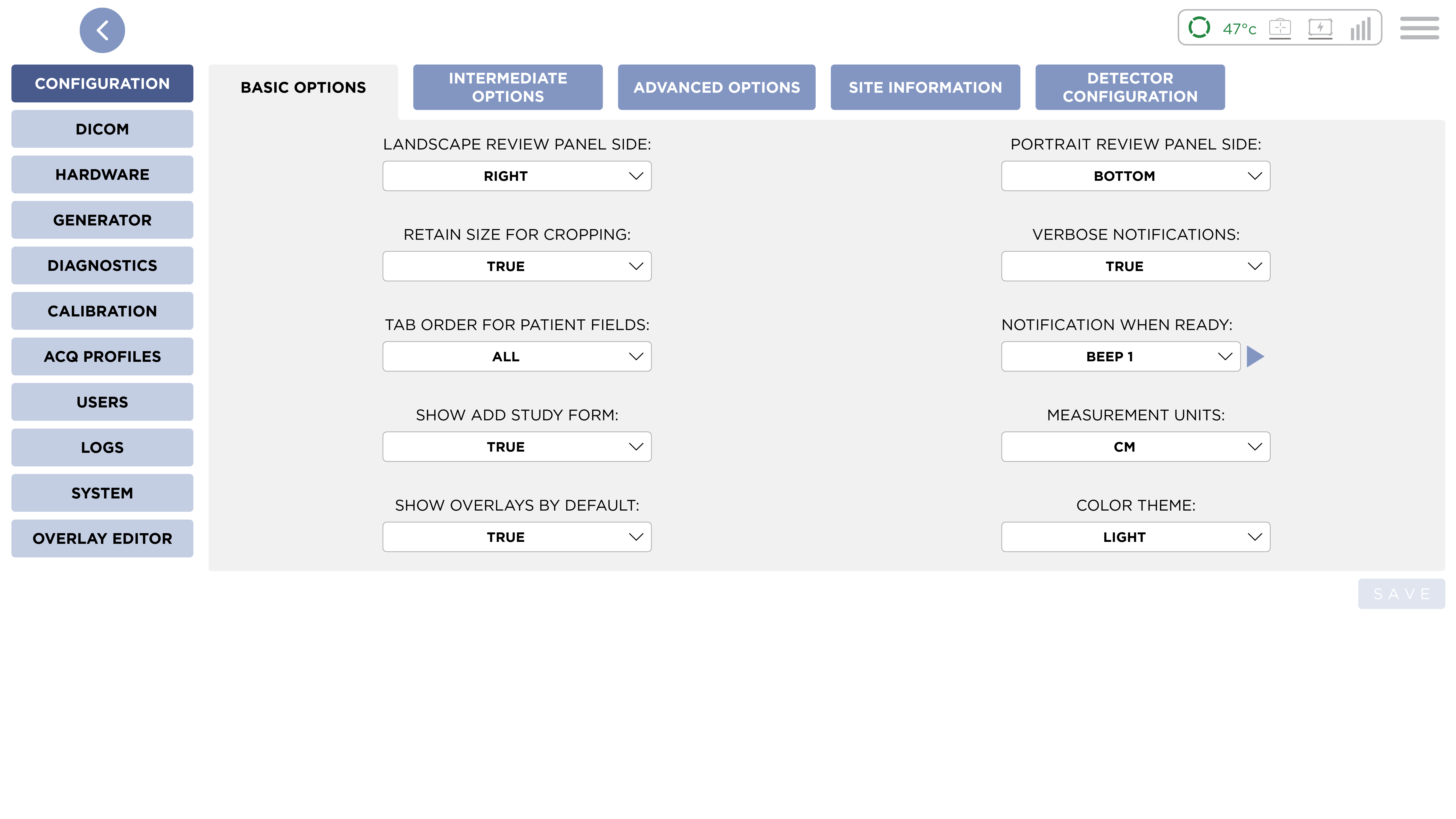

This is the Settings Screen. You can access this screen from the Main Patient Screen Menu. Here you can change the default settings of SmartDR Fusion. There are ten sections.

• Configuration
• DICOM
• Hardware
• Generator
• Diagnostics
• Calibration
• Acq Profiles
• Users
• Logs
• System
• Overlay Editor

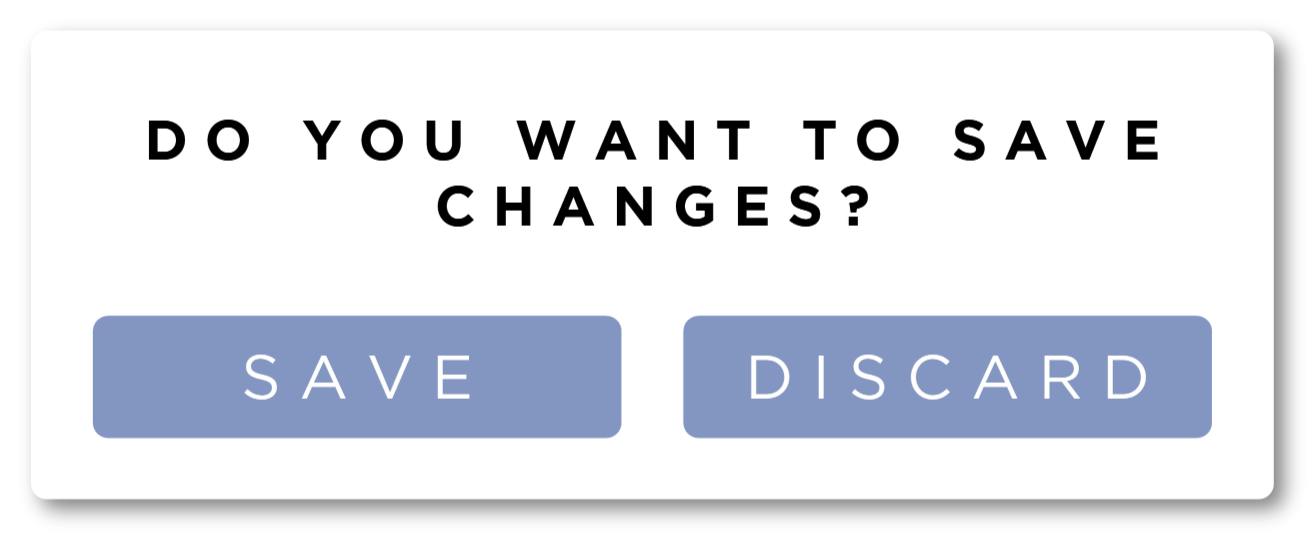

To return to the Main Patient Screen, Press the Back button. If the system detects you have made changes to the settings and not saved them, you will be asked if you want to save the changes.

Press OK to save the changes and continue to the Main Patient Screen. Pressing Discard will continue to the Main Patient Screen without saving the changes.
