Overlay Editor

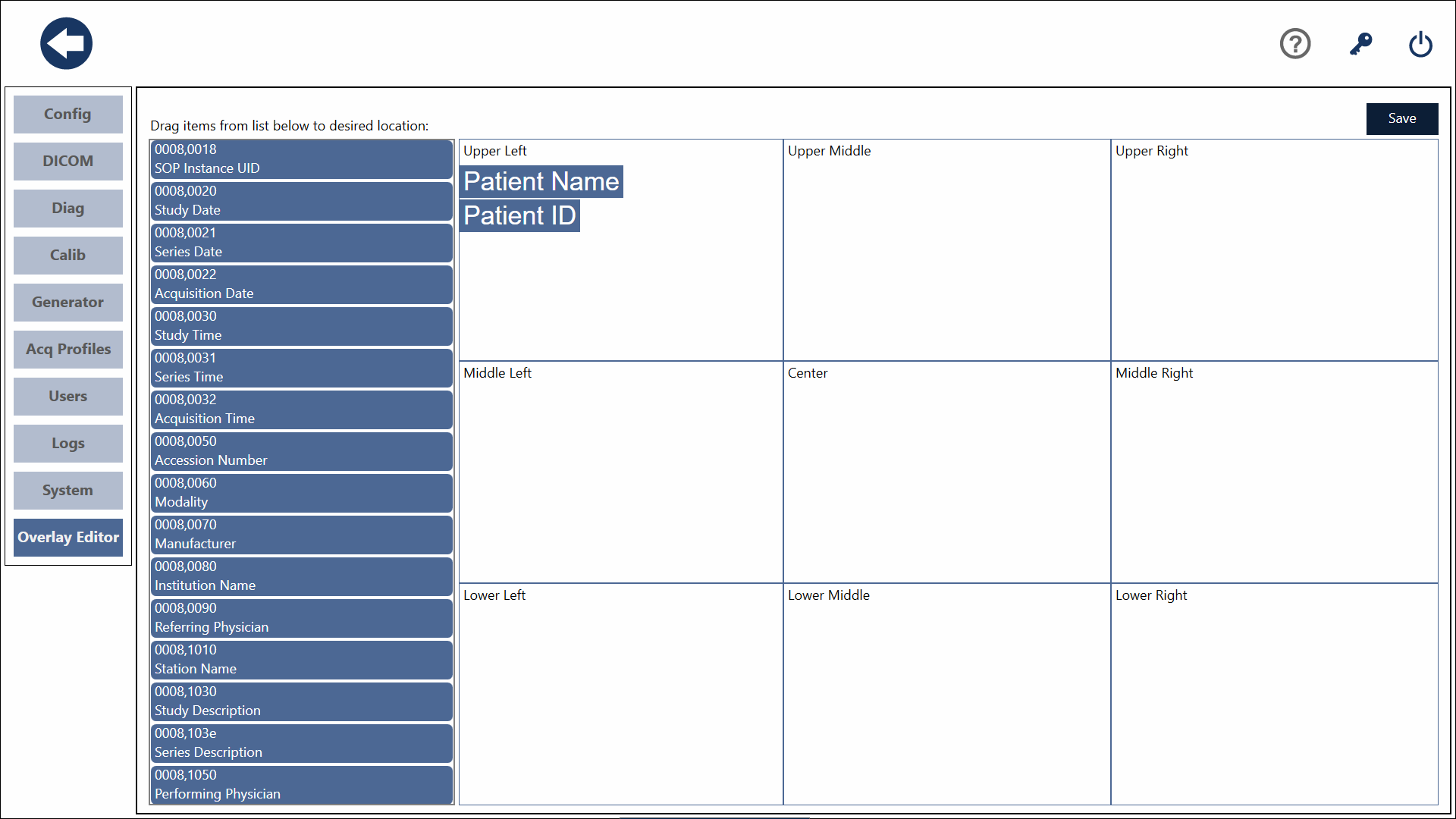

This is the Overlay Editor. Here you can layout the DICOM Tags you would like displayed in the image overlay. When you are finished editing the Overlays, press the Save button to save your changes.
Adding Tags
Tap one of the tags from the list on the left side. Tap on the Section you would like the tag to be displayed in.
Tag Display Properties

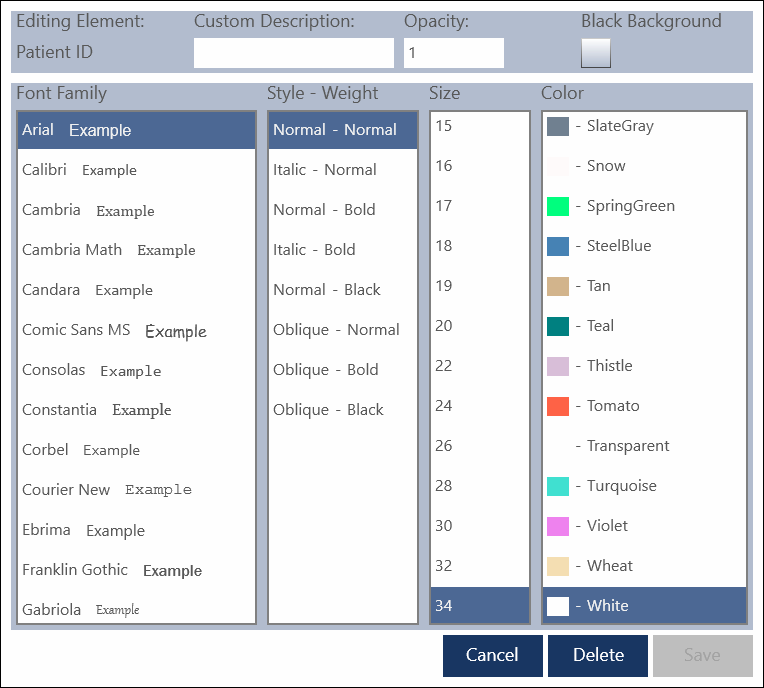

After you have added a tag to the grid, you are able to change it's display properties. To edit how a tag is displayed, right click or long press the tag. This will show the Overlay Item Edit form.
From here you can add a Custom Description to the overlay. This will prepend the Tag value.
For example, with the tag Patient ID, if a Custom Description of PID is used, for a patient with Patient ID 1234 the overlay will be displayed as PID 1234.
Font size can be adjusted as well by selecting a font size from the dropdown.
When the Black Background checkbox is checked, the overlay will have a black background making it much easier to read.
To discard your changes and dismiss the form press the cancel button.
You can delete the overlay by pressing the Delete button. This will close the form and remove the tag from the grid.
To accept the changes you have made to the overlay press the Save button.
The save button will only be active if changes have been made to the tag.
