DICOM General

DICOM General

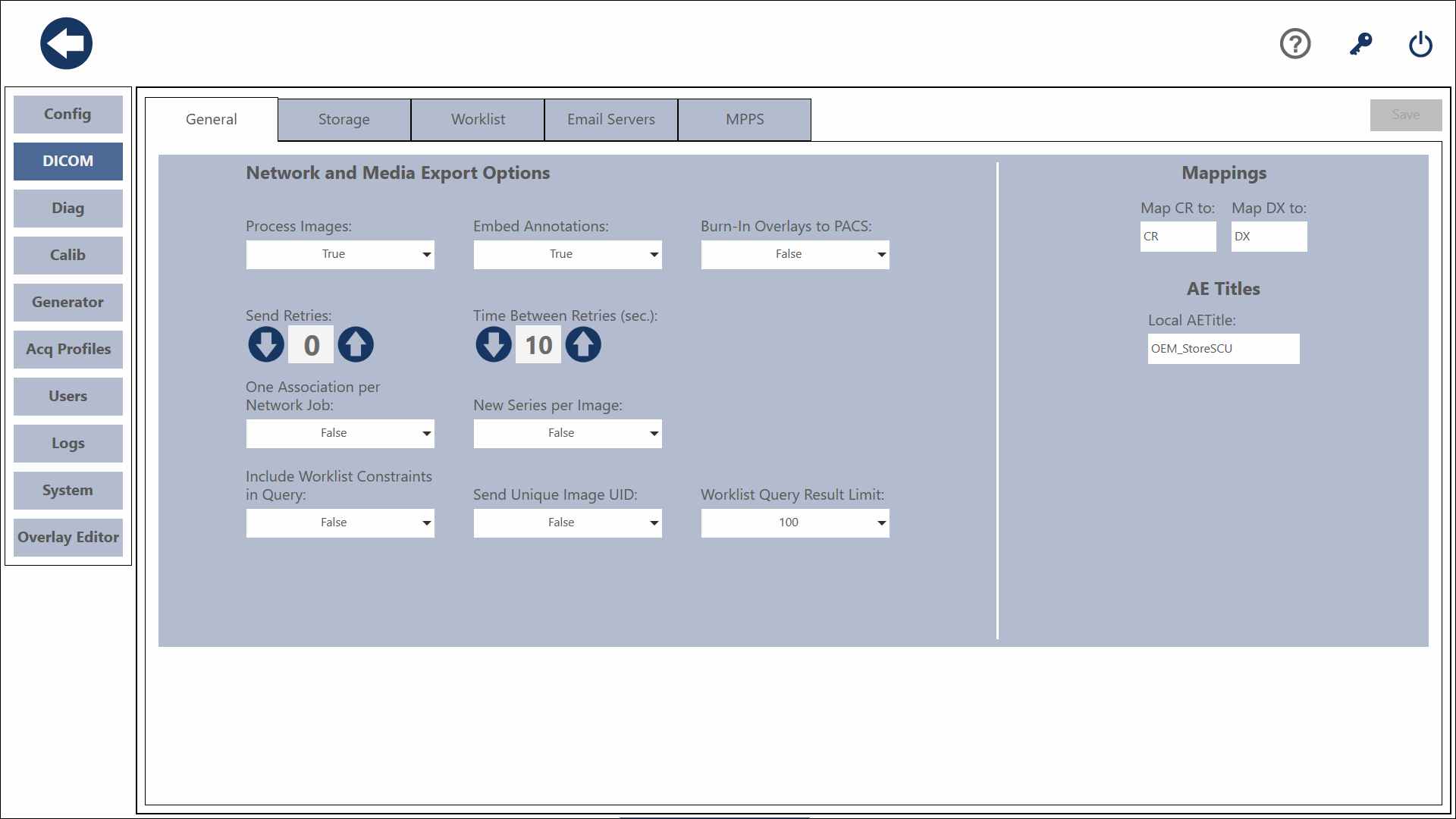

These are general general DICOM settings for the system.

Warning

These settings affect how images are exported from the system. Carefully consider the changes you make here.

Process Images​

If this option is set to False, exported images will not have the Musica Enhancement applied to them. The default value is True.

Embed Annotations​

If this option is set to False, images exported will not have annotations applied to them. The default value is True

Burn-In Overlays to PACS​

If this option is set to True, overlays will be applied to images when DICOM Sending. The default value is False.

info

Usually PACS or other DICOM Storage Servers will have a way to show DICOM Tags as overlays built into their own editor.

Send Retries​

This is the number of times the system will attempt to send an image after it has initially failed to send. The default value is 0.

Time Between Retries (Sec)​

This is the amount of time to wait in between retries in seconds. The default value is 10 seconds.

Include Worklist Constraints in Query​

If this option is set to True, constraints derived from the search settings will be used to query the worklist server. The default value is False.

Worklist Query Result Limit​

This is the number of results that will be displayed when a worklist search is performed. By default it is set to 100. Options are:

  • 50
  • 100
  • 250
  • 500
  • 1000
  • 2500
  • 5000

Local AE Title​

This is the AE Title of the system. The system uses this value as the Calling AE Title during DICOM Association. The Default value is OEM_StoreSCU.

Save​

To save changes you have made, press the Save button.
