Profile Settings

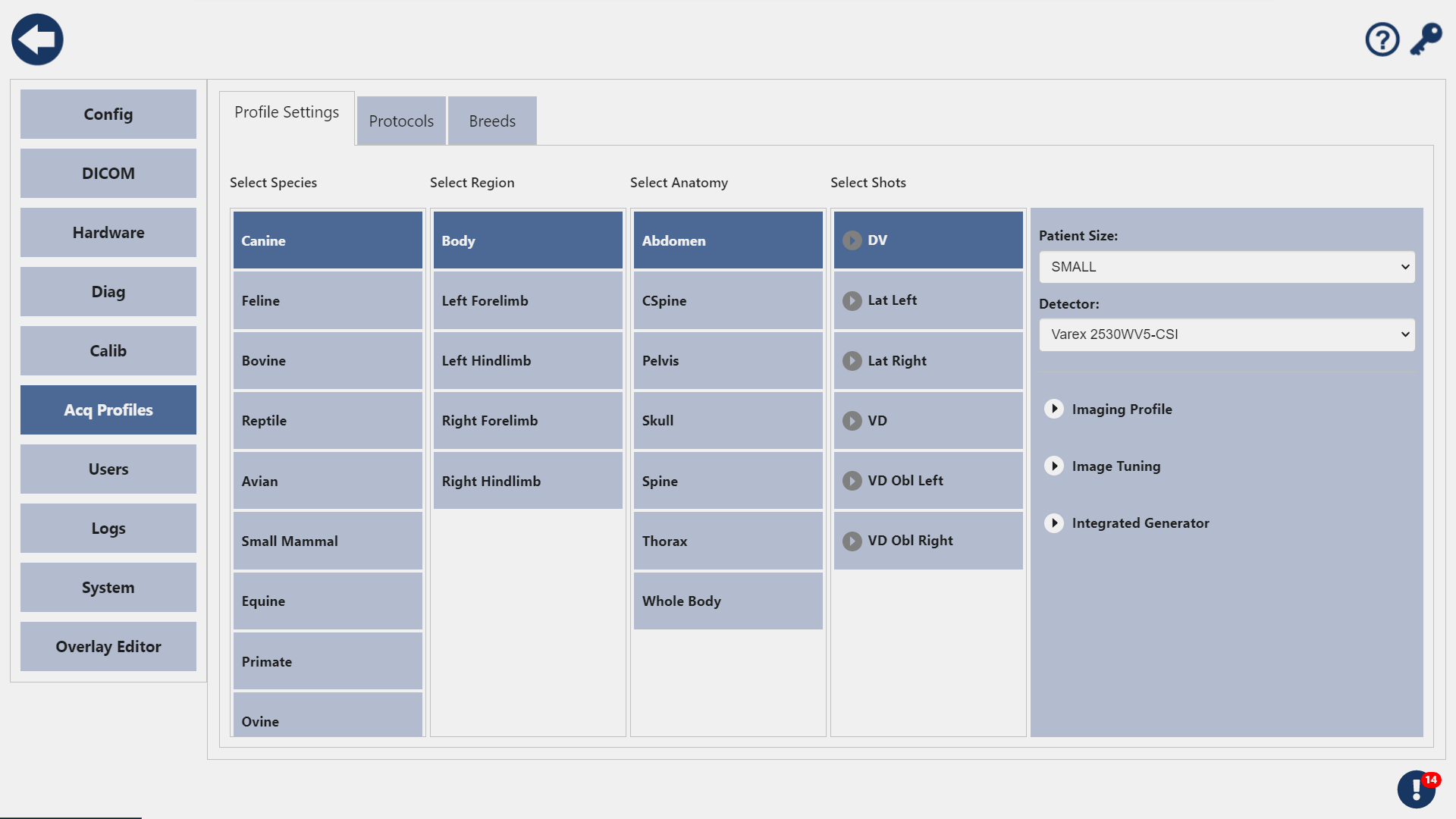

This is the Profile Settings menu. Every shot in SmartDR can be uniquely customized in this menu, but be careful as some changes may have adverse affects on image quality. If you're unsure, reach out to a Sound Customer Support rep.

tip

Changes you make to a shot are specific to patient size. Many settings have a Copy to all sizes button if you want those changes to be applied to all patient sizes.

Patient Sizes​

  • Small : Less than 20 lbs (9.072 kgs).
  • Small Medium : Greater than or equal to 20 lbs (9.072 kgs), less than 45 lbs (20.412 kgs).
  • Medium: Greater than or equal to 45 lbs (20.412 kgs), less than 80 lbs (36.287 kgs).
  • Medium Large: Greater than or equal to 80 lbs (36.287 kgs), less than 100 lbs (45.359 kgs).
  • Large: Greater than or equal to 100 lbs (45.359 kgs).

Each shot has many different settings. They are broken up into three sections: Imaging profile, Image Tuning, and Generator Settings. You can collapse or expand a section by clicking the arrow button next to it.

note

The Integrated Generator tab will only be visible if Generator Integration is properly configured within the software.

Image Profile​

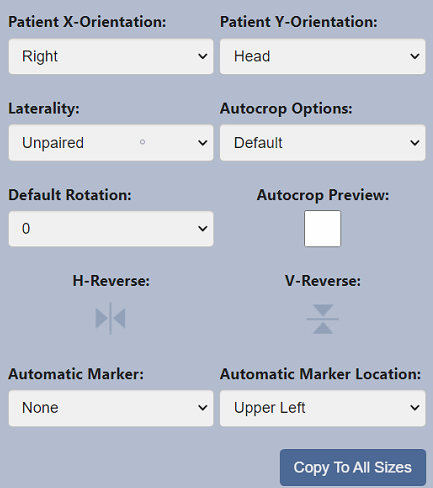

Imaging Profile

Patient X-Orientation​

This is the position of the patient in the X-Direction of the x-ray table. It is used to generate the Patient Orientation (0020,0020) DICOM Tag.

Possible values:

  • Anterior
  • Posterior
  • Left
  • Right
  • Head
  • Foot

Patient Y-Orientation​

This is the position of the patient in the Y-Direction of the x-ray table. It is used to generate the Patient Orientation (0020,0020) DICOM Tag.

Possible values:

  • Anterior
  • Posterior
  • Left
  • Right
  • Head
  • Foot

Laterality​

This is the laterality of the body part being examined. This is what is used to populate the Image Laterality (0020,0062) DICOM Tag.

Possible values:

  • Left
  • Right
  • Unpaired
  • Both

Autocrop Options​

When this option is set to True, the system will automatically crop the image when acquired for this shot. See the Acquire Review Screen section of this guide for more information.

Default Rotation​

This option defines how the image is rotated when the system acquires and image for this shot. This is applied in addition to the Detector's Default Rotation set in the Detector Configuration.

Autocrop Preview​

If this check box is checked, when an image is acquired for this shot, the system will display the image uncropped with a dashed line indicating the crop the system found. See the Acquire Review Screen section of this guide for more information.

H-Reverse​

When this toggle button is active, when an image is acquired for this shot, the image will be Horizontally Flipped.

V-Reverse​

When this toggle button is active, when an image is acquired for this shot, the image will be Vertically Flipped.

Automatic Marker​

This setting will automatically place a laterality marker if enabled. Your options are L, R, and None. The software defaults to None.

Automatic Marker Location​

This setting allows you to identify which region of the image you want the automatic marker to be placed. The location defaults to the Upper Left.

Copy to All Sizes​

Pressing this button will copy the Image Profile settings for the current patient size to all other sizes of the same species and shot.

Image Tuning​

Profile Settings

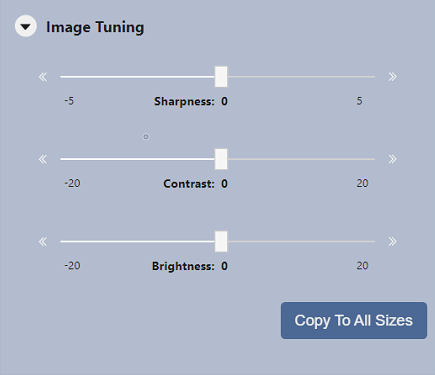

These are the Musica Image Processing tuning parameters. You can adjust Sharpness, Contrast, and Brightness. To adjust them by dragging the circle left and right or press the arrow buttons. To apply the same tuning parameters to all sizes, press the Copy to All Sizes button.

Generator Settings​

Profile Settings

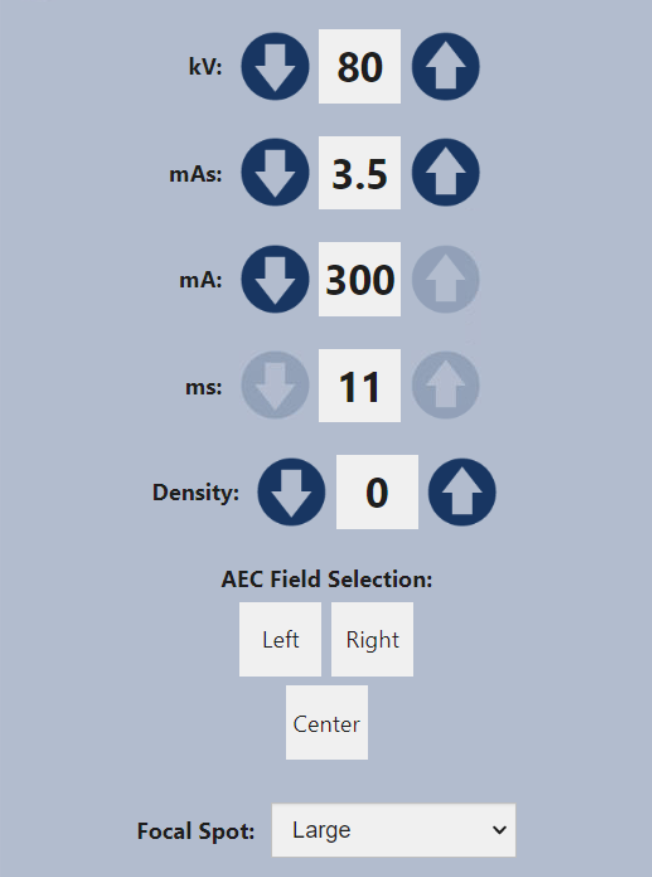

If an integrated generator is configured, the Generator Settings will be visible. Here you can adjust the kVp, mAs, and Focal Size the system will use for this shot and size.
