MPPS

MPPS

This is where you can configure a MPPS server. Only one MPPS server is allowed.

Add​

Click the Add Button. Enter a name for the server. Enter the IP address of the Server. Enter the AE Title of the Server. Enter the port number of the server. Press the Save button to save the Server.

danger

You can only have one MPPS server configured.

Delete​

To delete a server, select the server you wish to delete and press the Delete Button.

Ping​

You can Ping the IP address to verify IP Connectivity with the Server By pressing the Ping button. The results of the Ping will be displayed in a popup. Press the Close button to dismiss the popup.

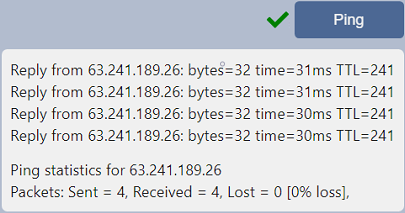

Ping Results

Echo​

You can verify DICOM connectivity by pressing the Echo Button. The results will be displayed in a popup. Press the Close button to dismiss the popup.

Echo Result

Send MPPS For:​

This setting controls what triggers an MPPS message. The default is set to Worklist Only but can be changed to everyone. Setting it to Everyone will send an MPPS response for every action your system takes, even if the MPPS server is not waiting for confirmation for that action.
