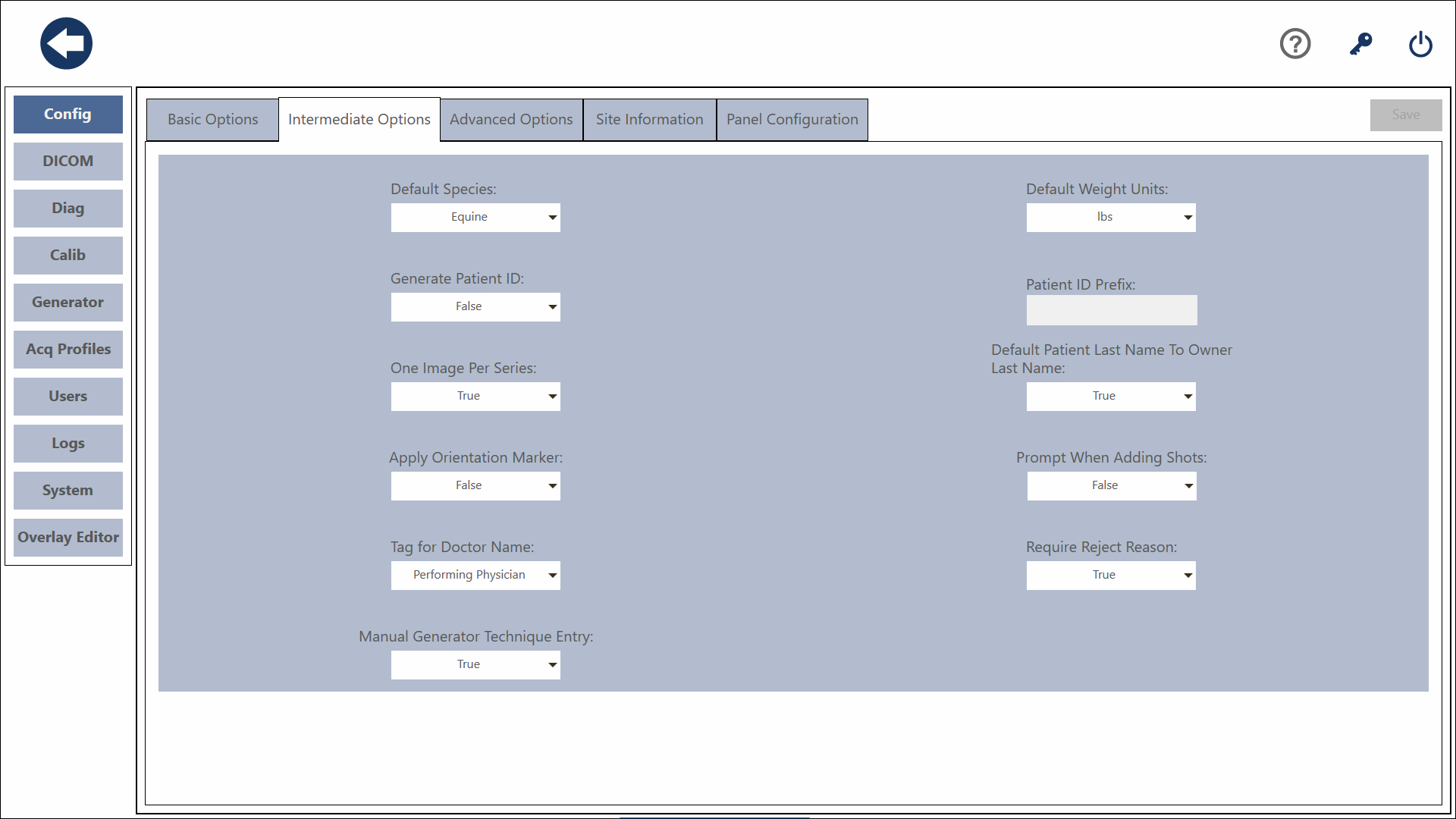

Intermediate Options
Default Species
This option will affect the default Species selected when adding a patient. By default this will be set to either Canine or Equine.
If you don't want a default species assigned, None is a selectable option within the dropdown.
Generate Patient Id
When this checkbox is checked, the system will automatically generate a Patient Id for new patients. The default setting is unchecked, The patient Id is generated from the system time and is in the from MMddyyhhmmss.
One Image Per Series
This setting adjusts how images are saved. With it set to True, each image acquired is saved as its own series within the study.
Apply Orientation Marker
Setting this to True will enable the software to apply a small marker in the upper left corner of the image. This marker indicates how many flips have been applied to the image, an F indicates an even number of flips and a B indicates an odd number. This setting defaults to False.
Pretend we're working with an older system that still uses film. When holding the xray normally you're looking at the Front, but if you flip it over once you'll see the Back. Flip the image over a second time and you're looking at the Front again.
Tag for Doctor Name
When exporting as DICOM, the system will write the name of the Vet selected in the study to the specified tag. Options are Performing Physician (0008,1050) and Referring Physician (0008,0090). The default setting is Performing Physician.
Manual Generator Technique Entry
This option enables Manual Technique Entry in the Acquire Review Screen when set to True. When this option is set to False, Manual Technique Entry is disabled. The default setting is False.
Default Weight Units
Because DICOM requires weight to be in kilograms, the system stores the patient's weight in kilograms. Setting this option to LBS will allow the user to enter the weight in pounds and display the weight in pounds. By default this setting is set to KG.
Patient Id Prefix
This option is disabled until Generate Patient Id is set to True. When generating a Patient Id, the system will prepend it with this value.
For example on December 13, 2021 at 4:55:33 PM, a Patient Id Prefix of PID will be added to the generated ID 121321165533 to make PID121321165533.
Default Patient Last Name to Owner Last Name
This option affects Creating a patient. When it is set to True, the user does not have to enter the Patient Last Name. The system will use the Owner's Last Name as the Patient's Last Name when the Patient Last Name field is empty.By default it is set to True.
Prompt When Adding Shots
When this option is set to True, the system will prompt the user to confirm that they wish to add shots to a study that already has images acquired. By default it is set to False.
Require Image Reject Reason
When set to True the user will be required to select a reason when rejecting an image. They will see a form popup with a Combo Box with reasons for the rejection. By default this is set to False
Save
To save changes you have made, press the Save button.
