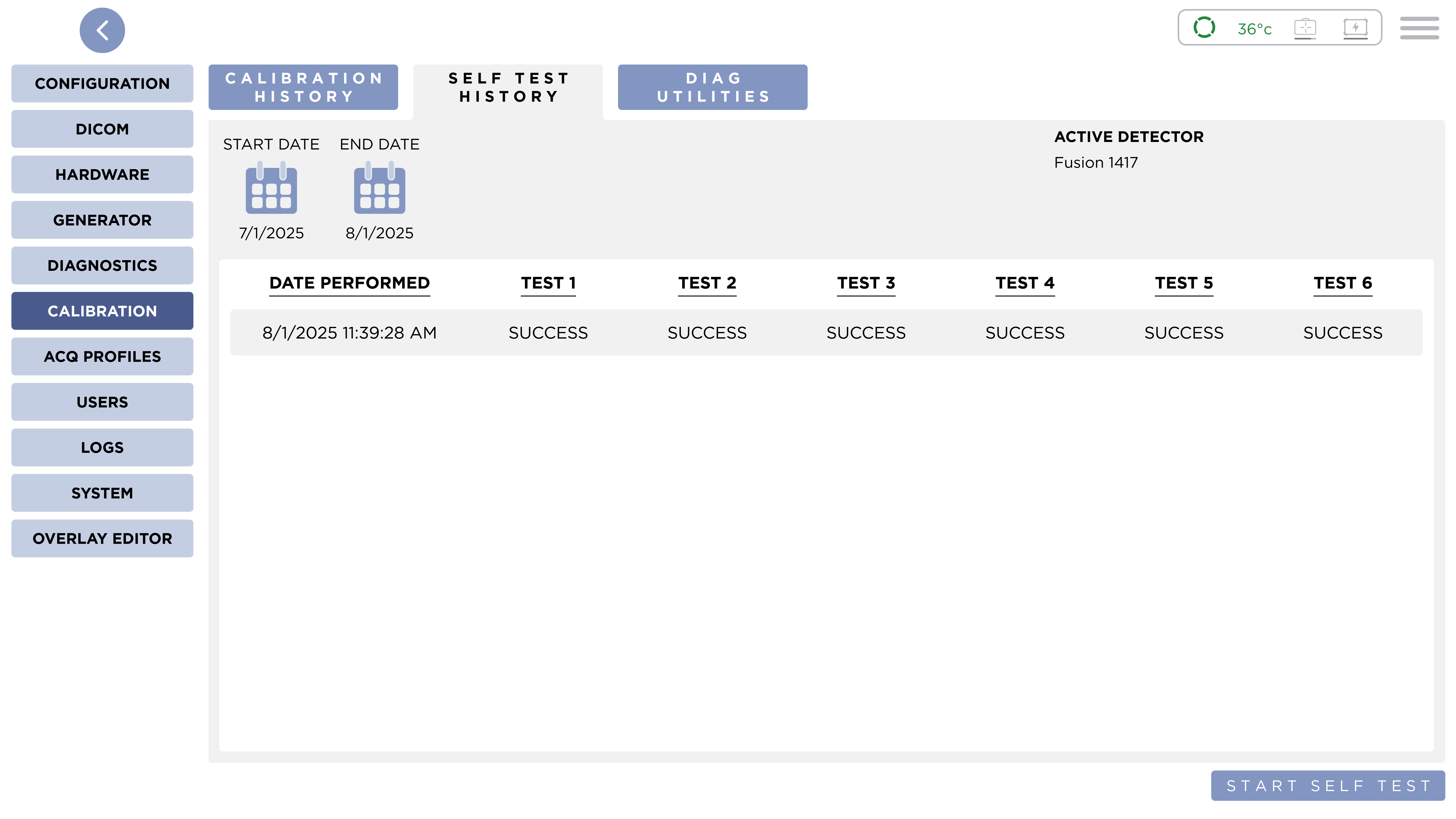

Self Test History

This tab is where you can view a list of Self Tests performed on the Detector and their results. You can limit the results with the Start and End Dates.

Performing a Self Test

To perform a Self Test, press the Start Self Test button.

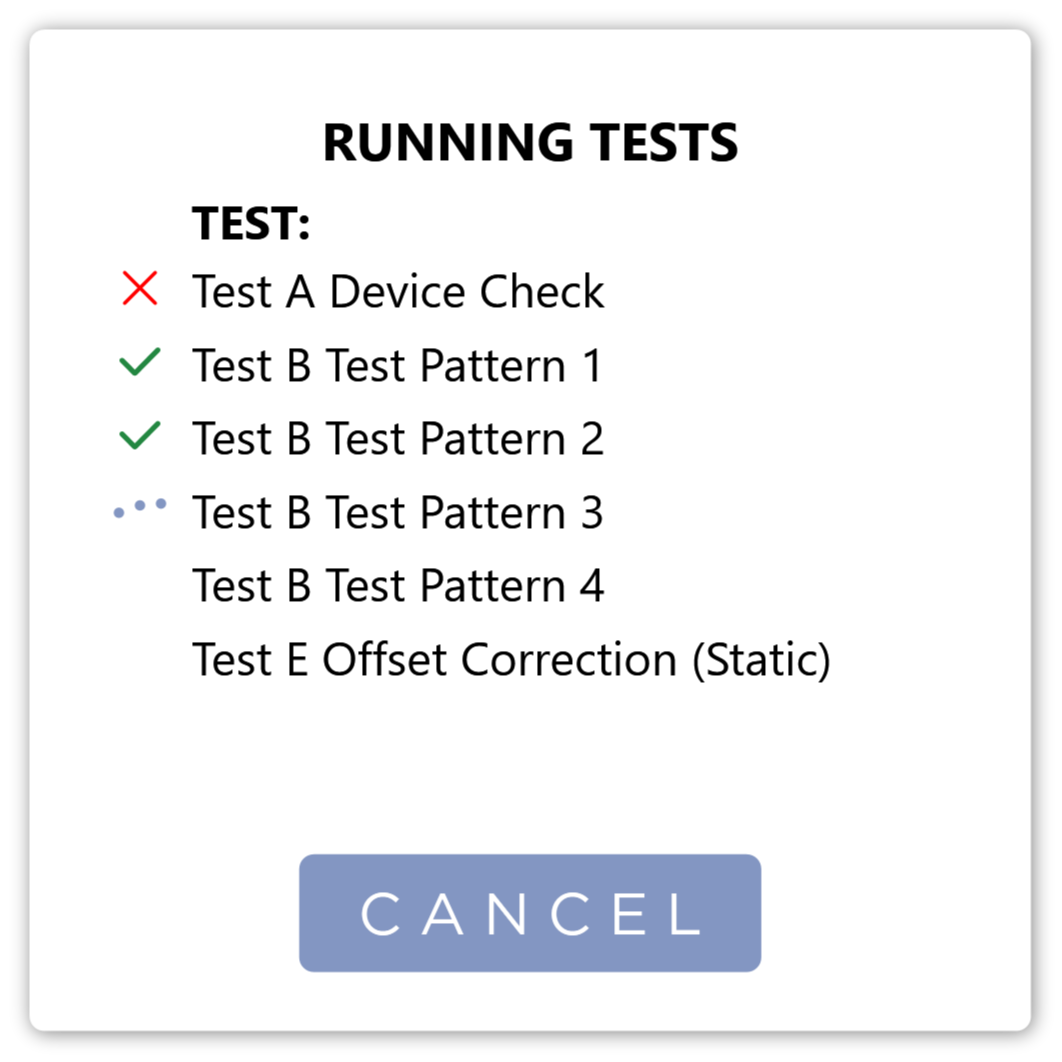

The system will automatically perform the Self Test. The popup will appear, initialize the test suite, and perform 6 tests.

You can Cancel a Self Test by pressing the Cancel button.

Each test has a status icon shown to the left of the name of the test.

• A Test with a Red X indicates a test has failed.
• A Test with a Green Checkmark indicates a test has passed.
• A Test with Three Blue Bouncing Dots indicates a test is currently being run.
• A Test with no status icon indicates has not been run yet.

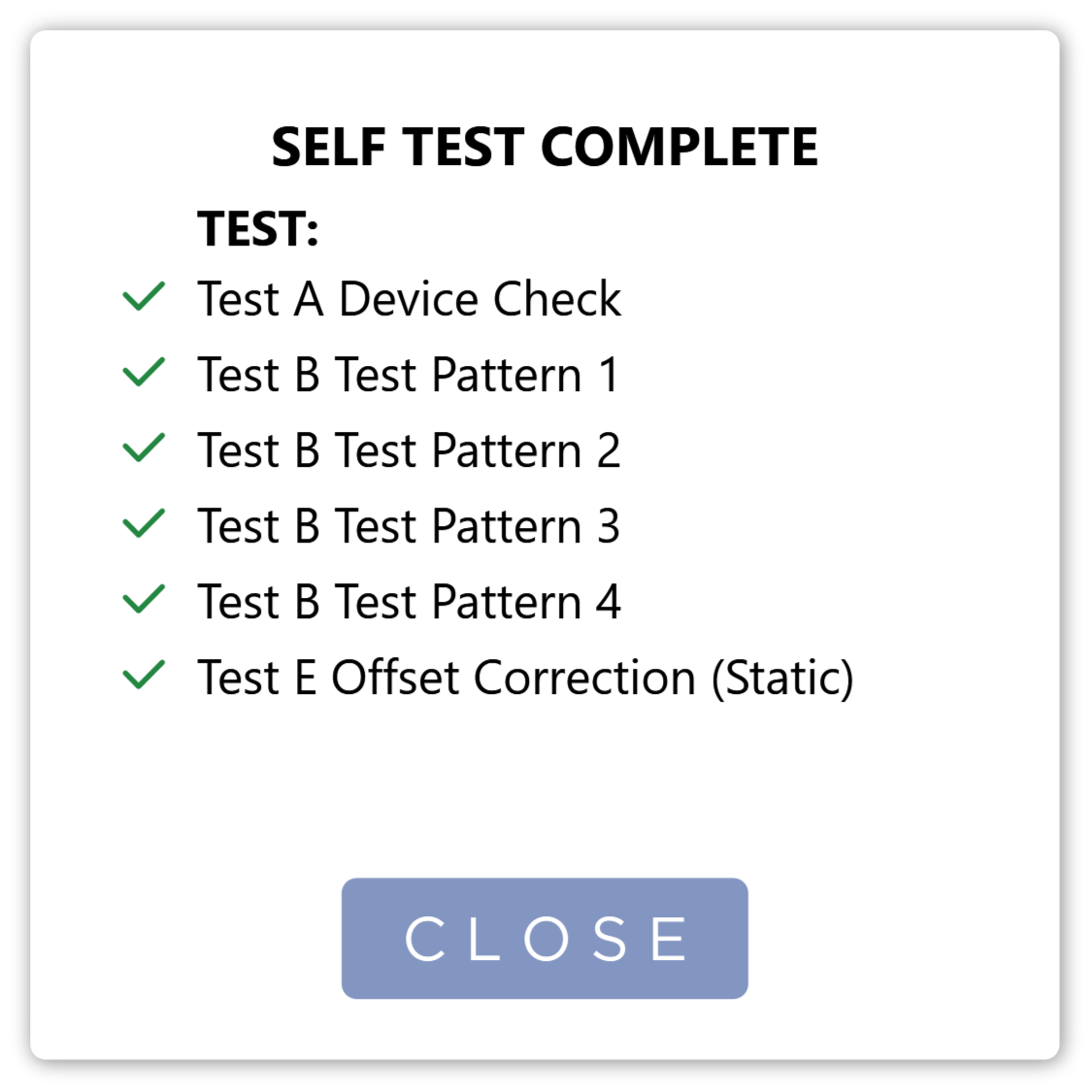

When the Self Test is complete, press the Close button and the results will be saved in the history.
