Diagnostic Utilities
In this tab you will find diagnostic utilities.
Do not use these utilities without guidance from Sound Customer Support.
Clear Detector Memory
Images that have not been successfully transmitted to the workstation will be stored on the detector. Normally, these can be recovered during acquisition with the Image Recovery process. Once an image is successfully transmitted, it is deleted from the detector memory. However, if for some reason Image Recovery does not occur as expected, the image remains in the detector's memory. There is only enough space for 99 of these images. If there is no space left in the memory for new images, Image acquisition will be disabled. This utility allows you to delete all images stored on the detector.

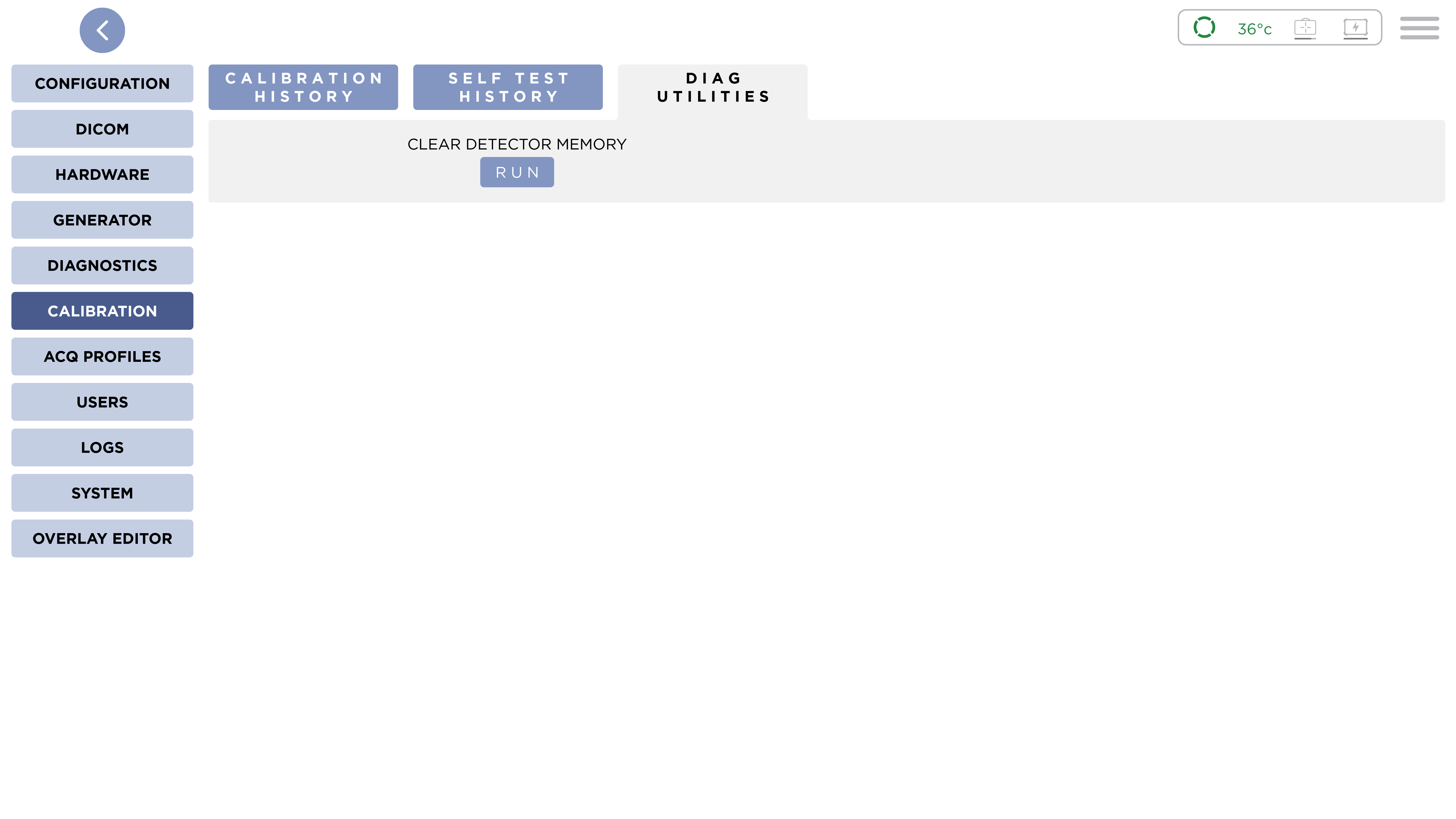

Click the Run button. This will open the Clear Detector Memory dialog.

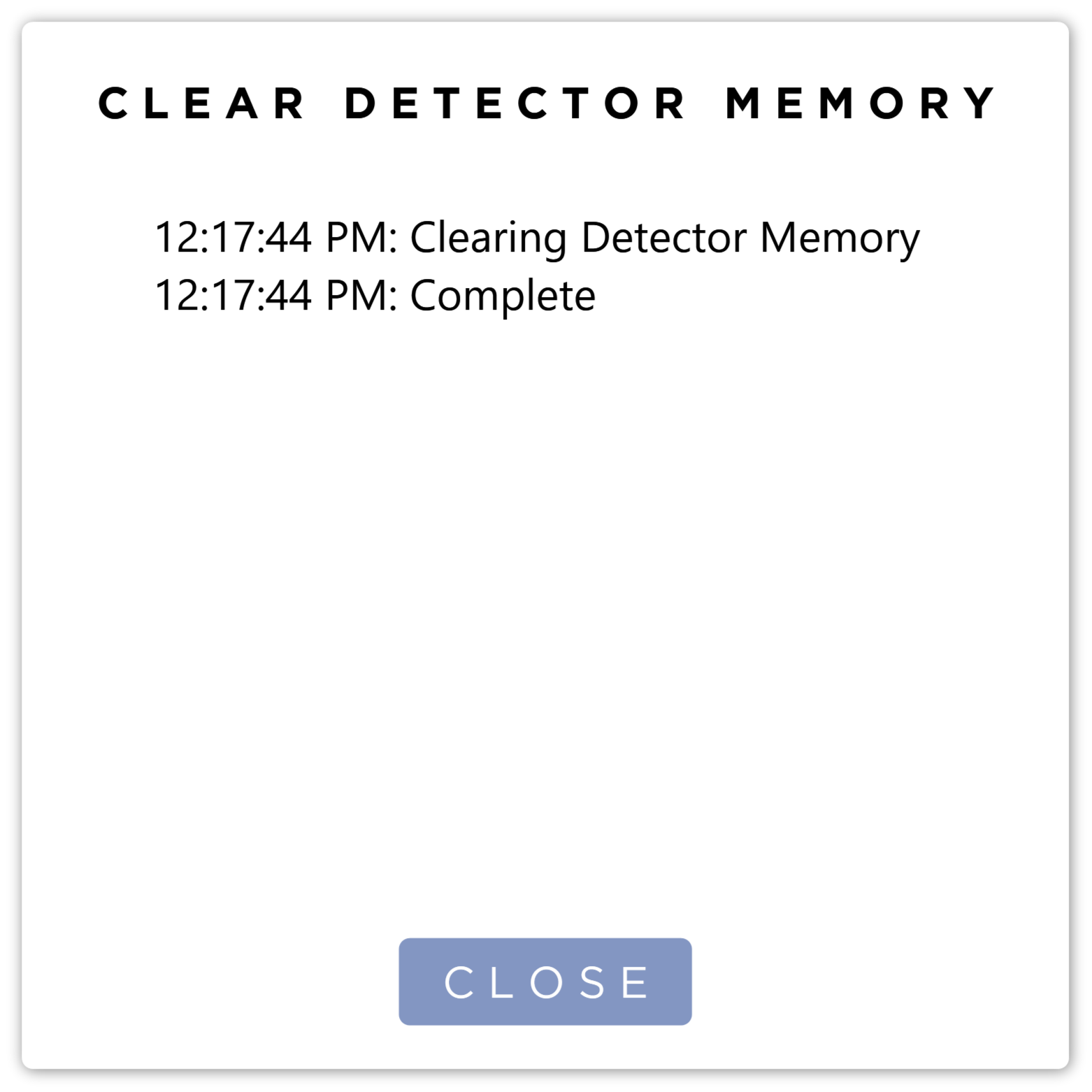

You will see the current status of the process. Once the process has completed, you can press the Close button to dismiss the dialog.
