MPPS
This is where you can configure a MPPS device.

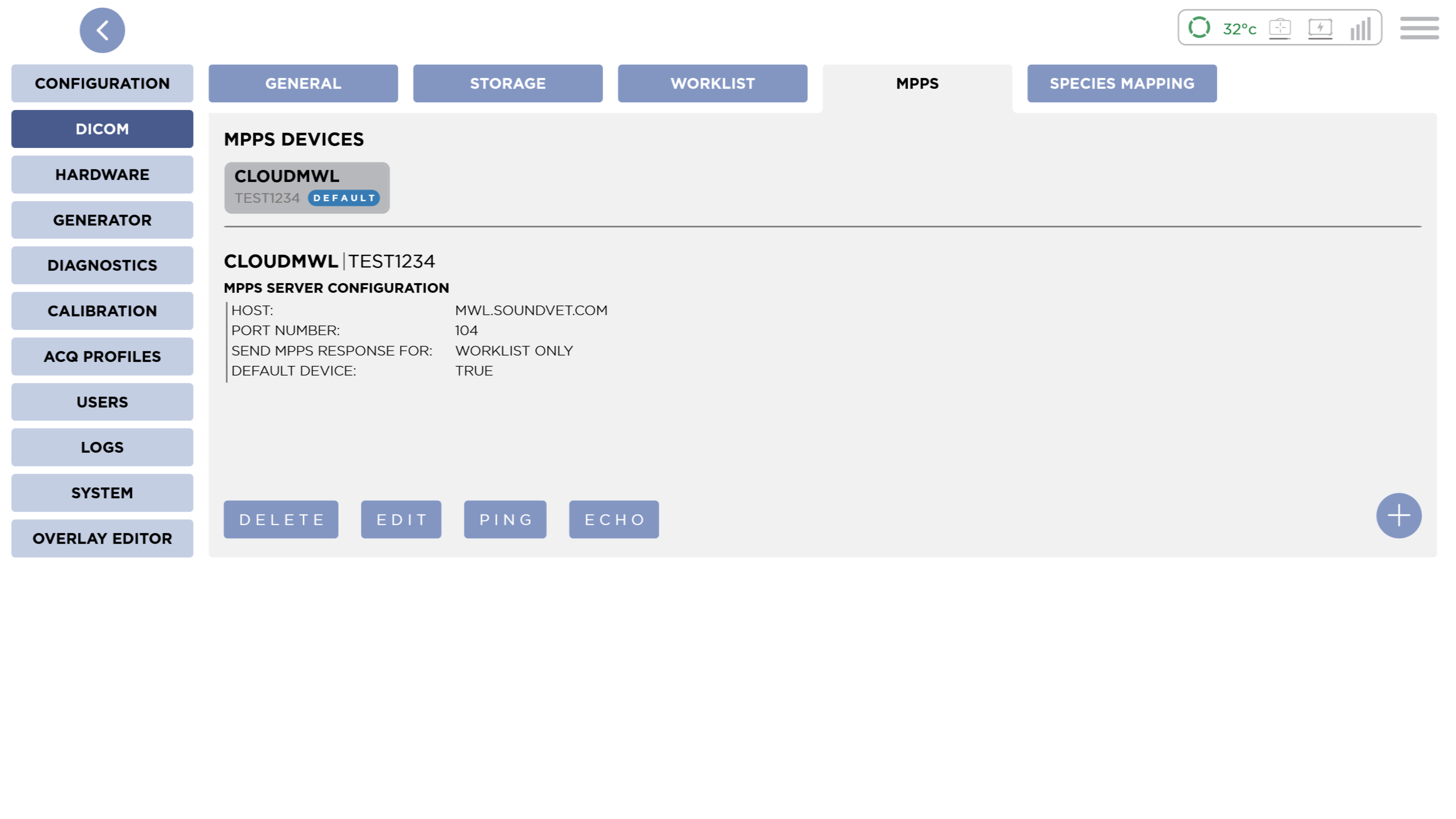

The current list of configured devices is shown at the top. Selecting a device will show you its details.
Default Device
Only Default Device will be used. In the list of devices, the Default Device is shown with a blue Default badge.
Add a Device

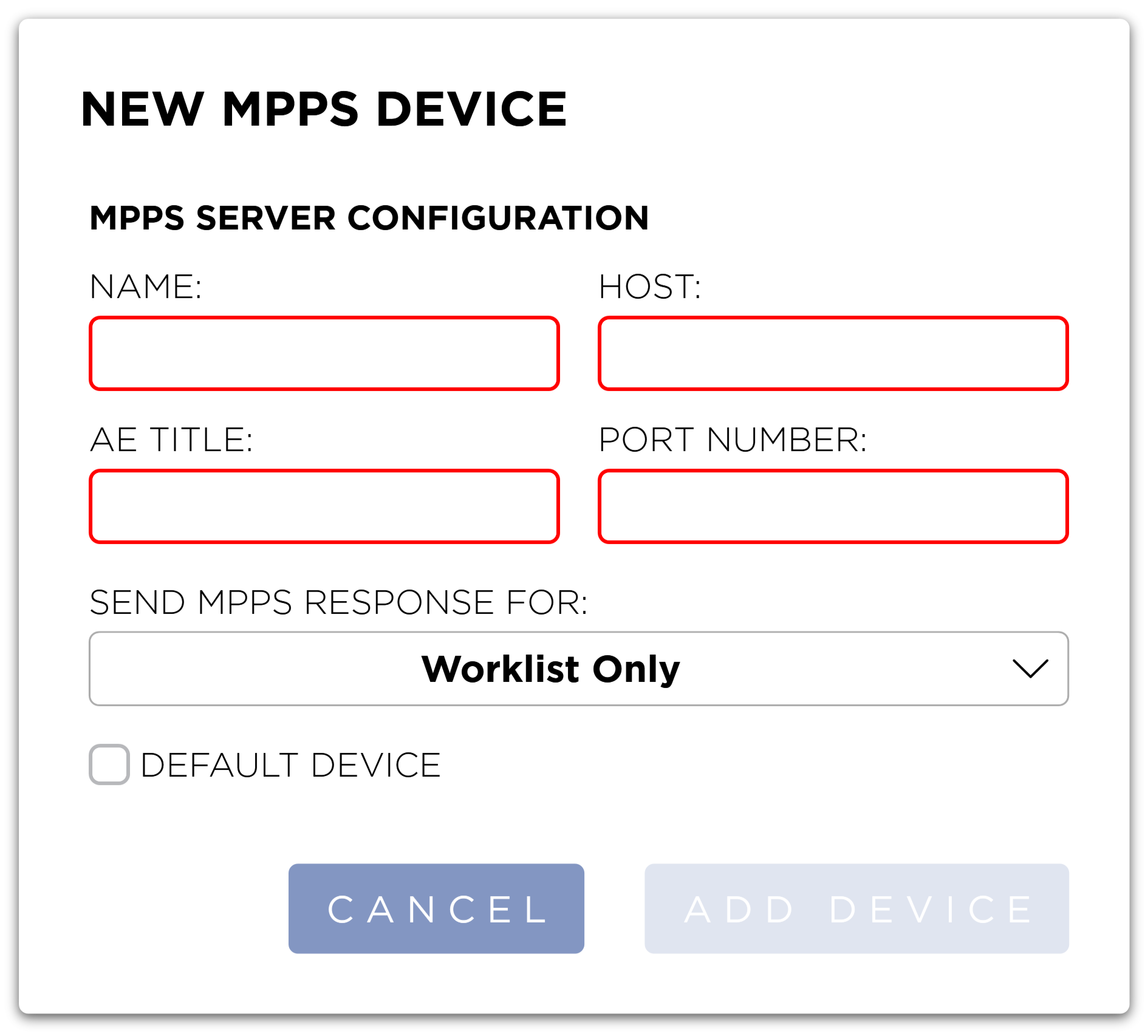

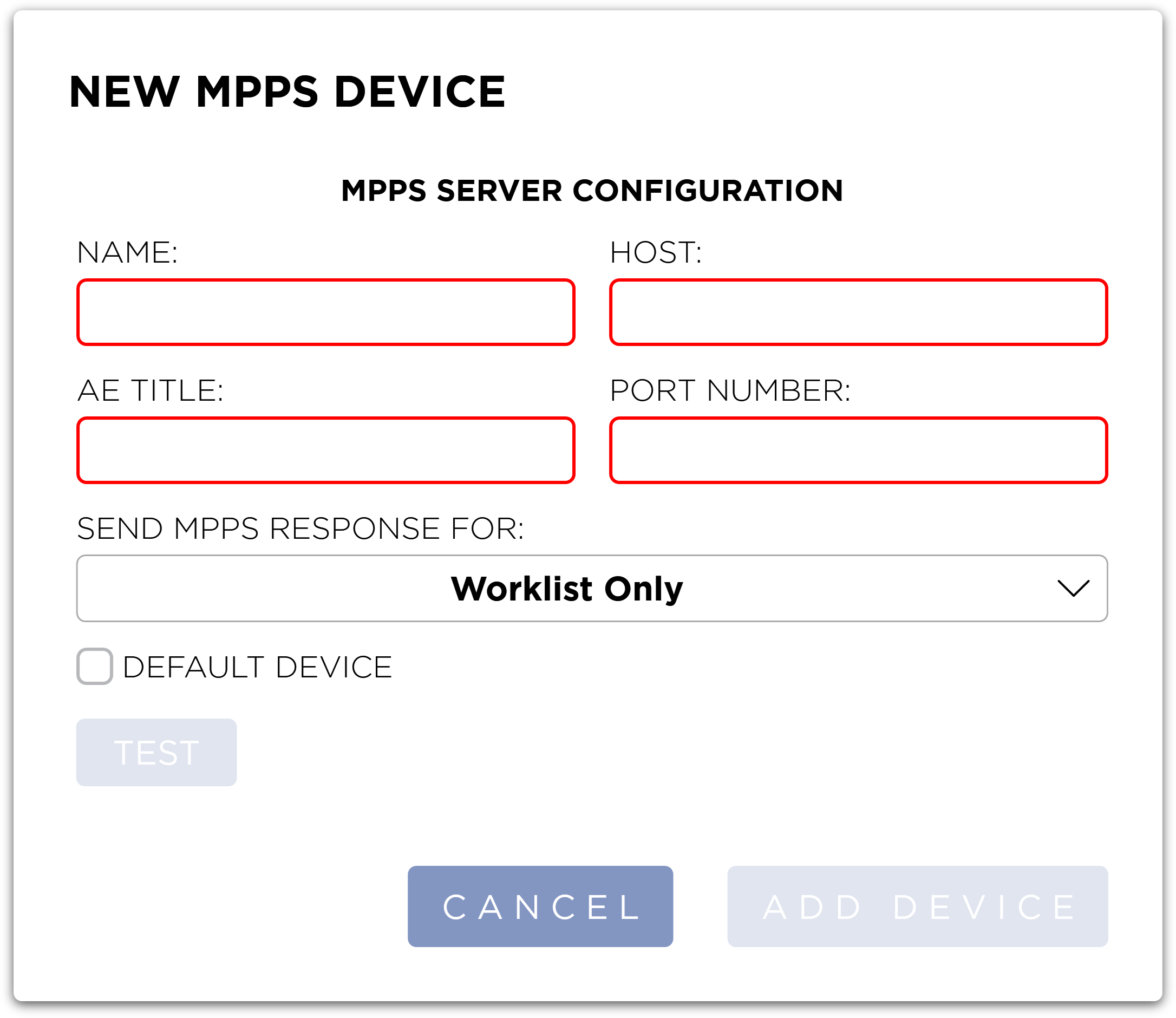

Pressing the Add button will show the New MPPS Device dialog.
Enter the DICOM demographics for the device and press the Add Device button to save the device.
The Add Device button will only be active once all required fields have been entered.
Pressing the Cancel button will close the dialog and discard any changes.
Required
Name
This is the display name for you're device. This is required.
Host
This is the host name or IP address for the device. This is required.
AE Title
This is the AE Title of the device. This is required.
Port Number
This is the Port number for the device. This is required.
Optional
Send MPPS Response For
This option selects which studies MPPS responses are sent for. When configured for Worklist Only, only studies created from worklist entries will generate MPPS responses. When configured for Every Study, all studies will generate MPPS responses. The default is Worklist Only.
Default Device
To set this as the Default Device, check the Default Device checkbox.
Edit a Device

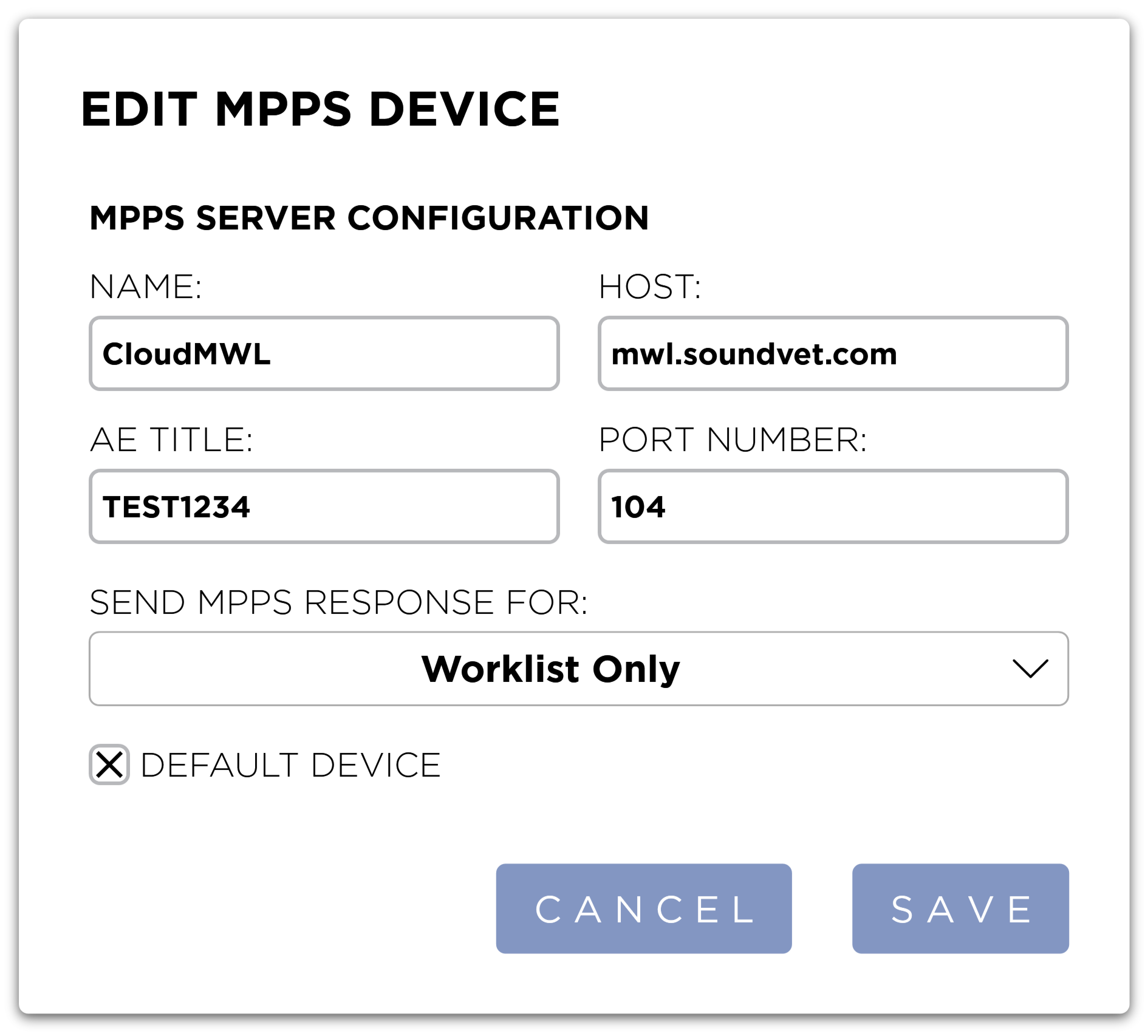

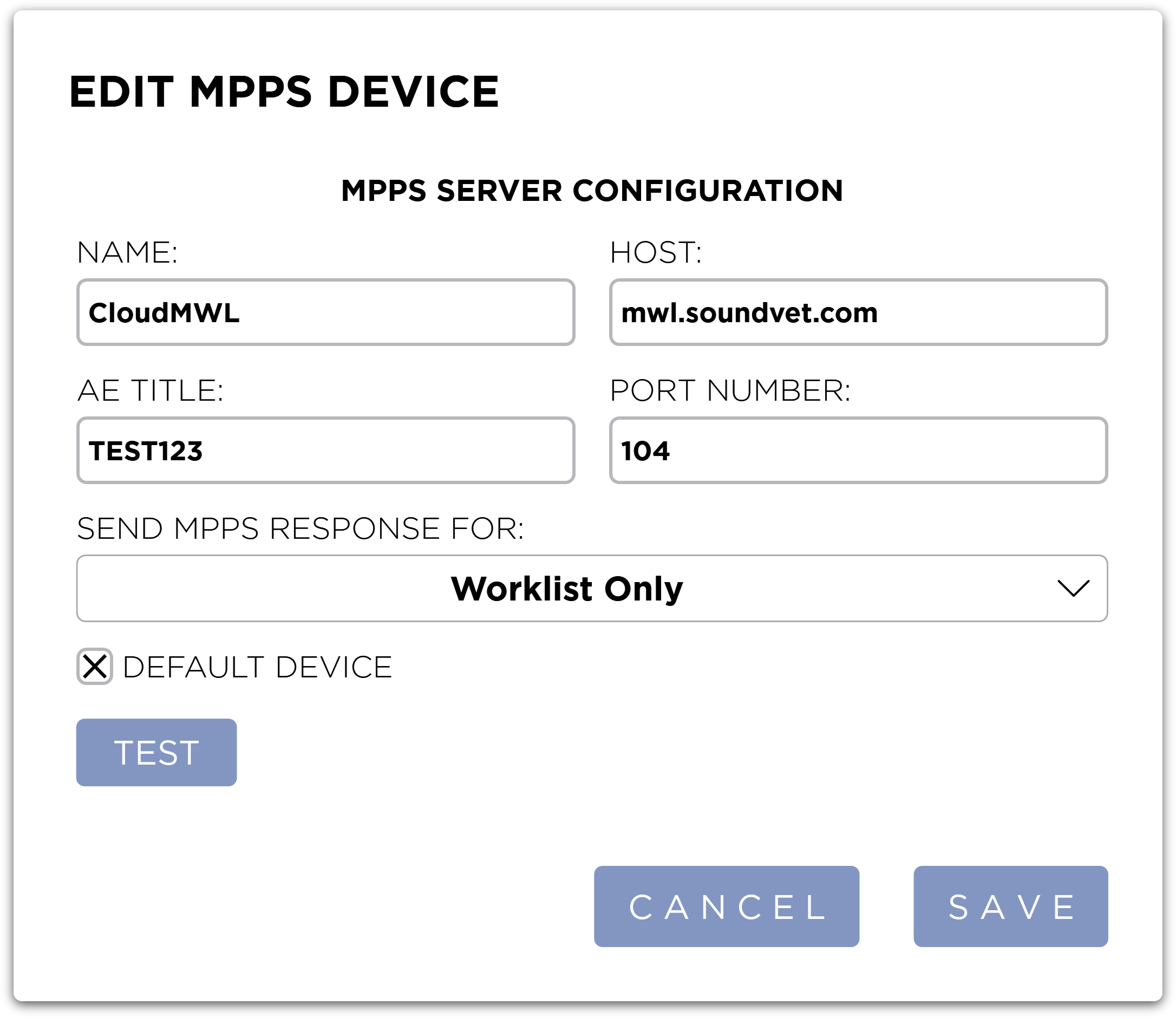

With a device selected, press the Edit button. The Edit MPPS Device dialog will be shown.
After making you're changes, pressing the Save button will save you're changes and close the dialog.
Pressing the Cancel button will discard you're changes and close the dialog.
Delete a Device

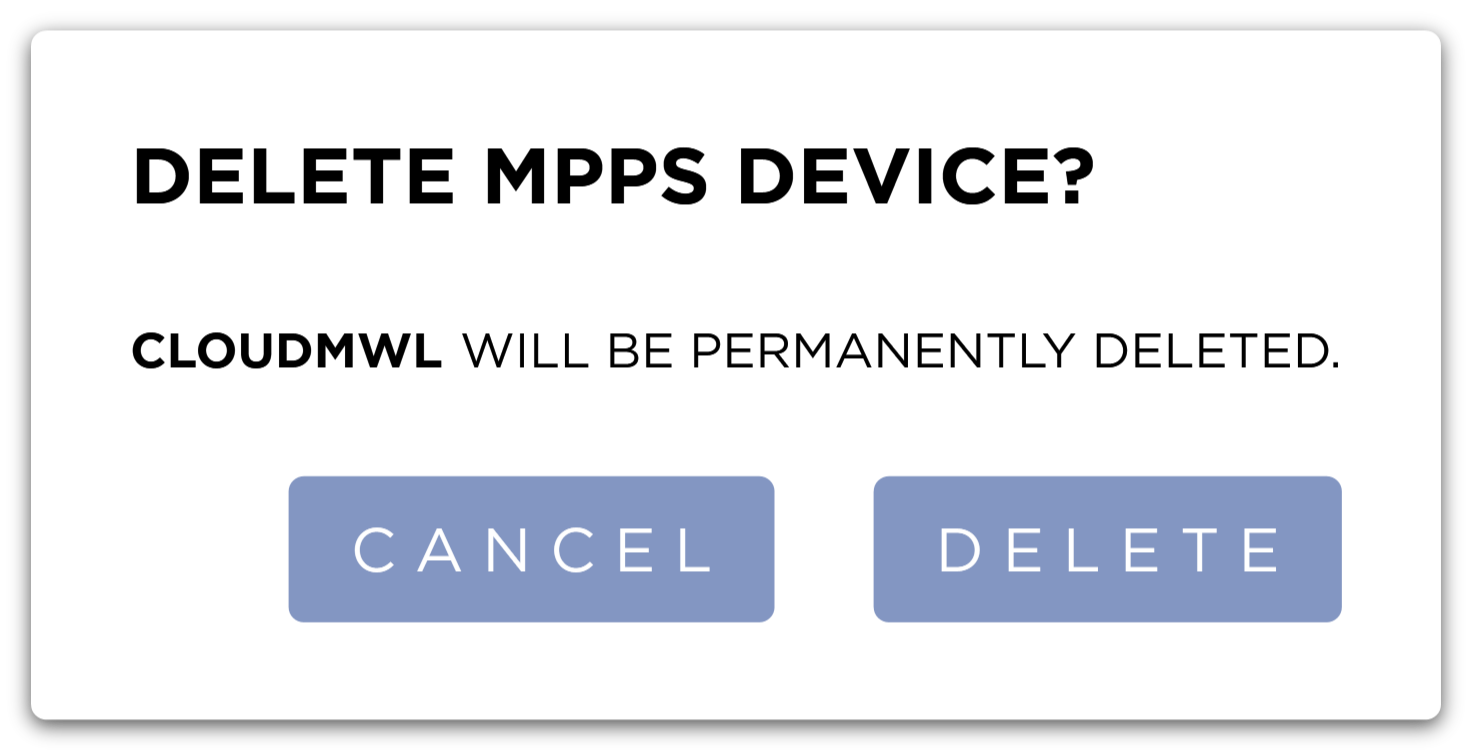

To delete a Device, select the device you wish to delete from the list and press the Delete button. You will be shown a confirmation dialog.
Pressing the Delete button will Delete the device from the system. Pressing the Cancel button will close the dialog.
Ping
To verify IP connectivity with the Device, select the device from the list and press the Ping button. The results will be displayed in a dialog. Press the Close button to dismiss the dialog.
Echo
To verify DICOM connectivity with the Device, select the device from the list and press the Echo button. The results will be displayed in a dialog. Press the Close button to dismiss the dialog.
