Storage

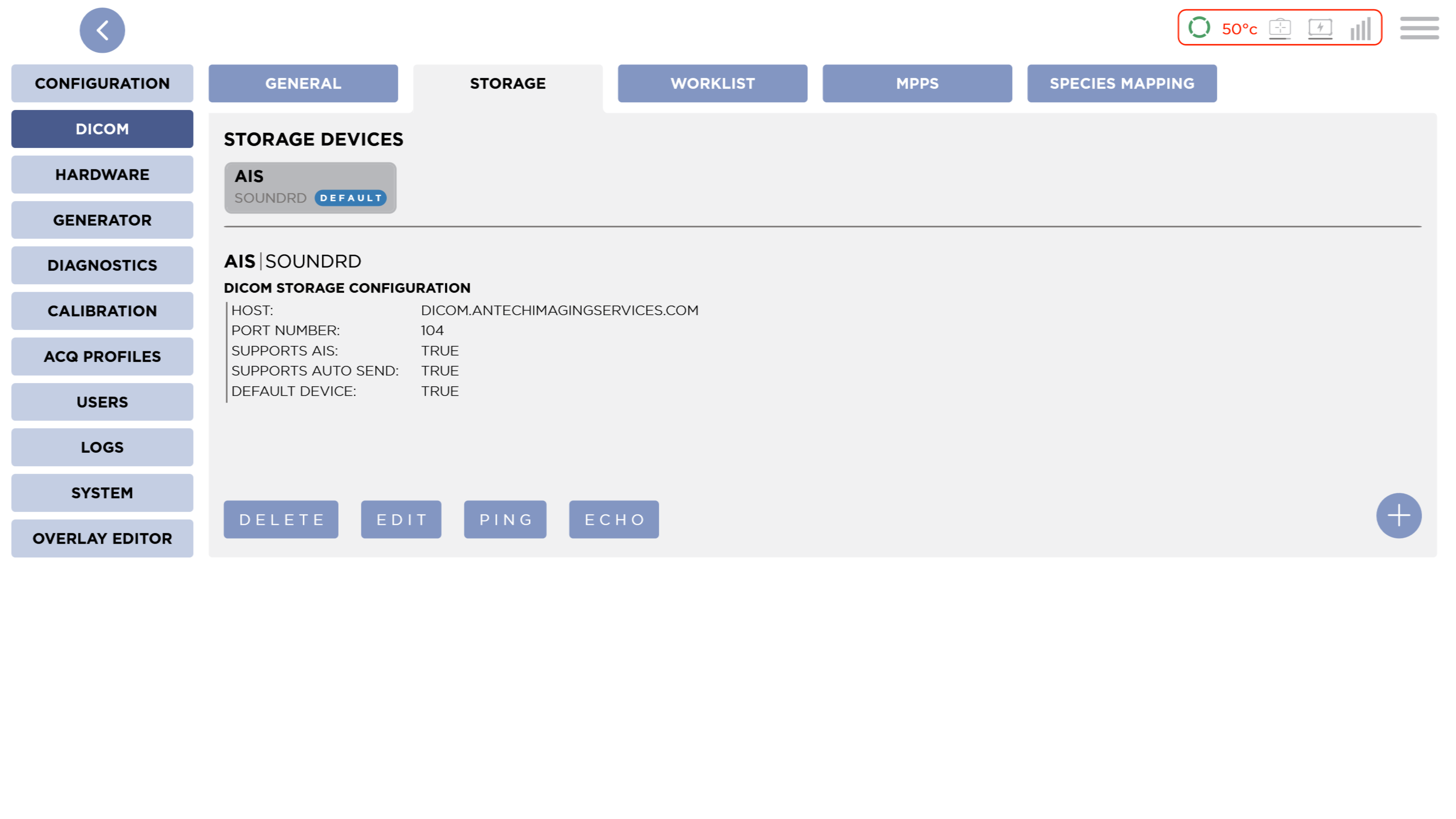

This is where you can configure DICOM Storage Devices. The current list of configured devices is shown at the top. Selecting a device will show you its details.

Default Device

The Default Device will be automatically chosen in the Export Form and the Batch Send Form. In addition, Send Unsent and Emergency Send will send images to the Default Device. In the list of devices, the Default Device is shown with a blue Default badge.

Add a Device

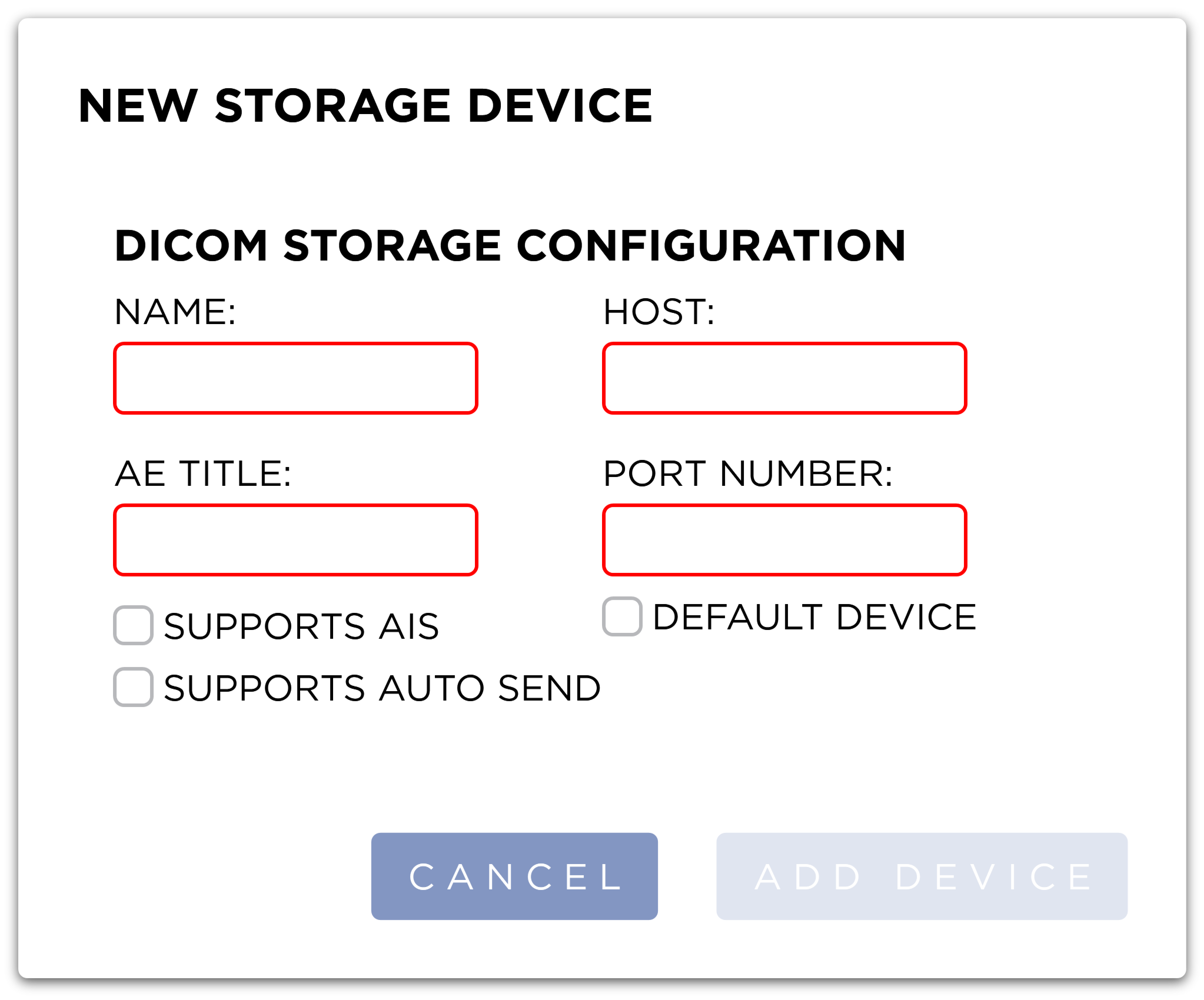

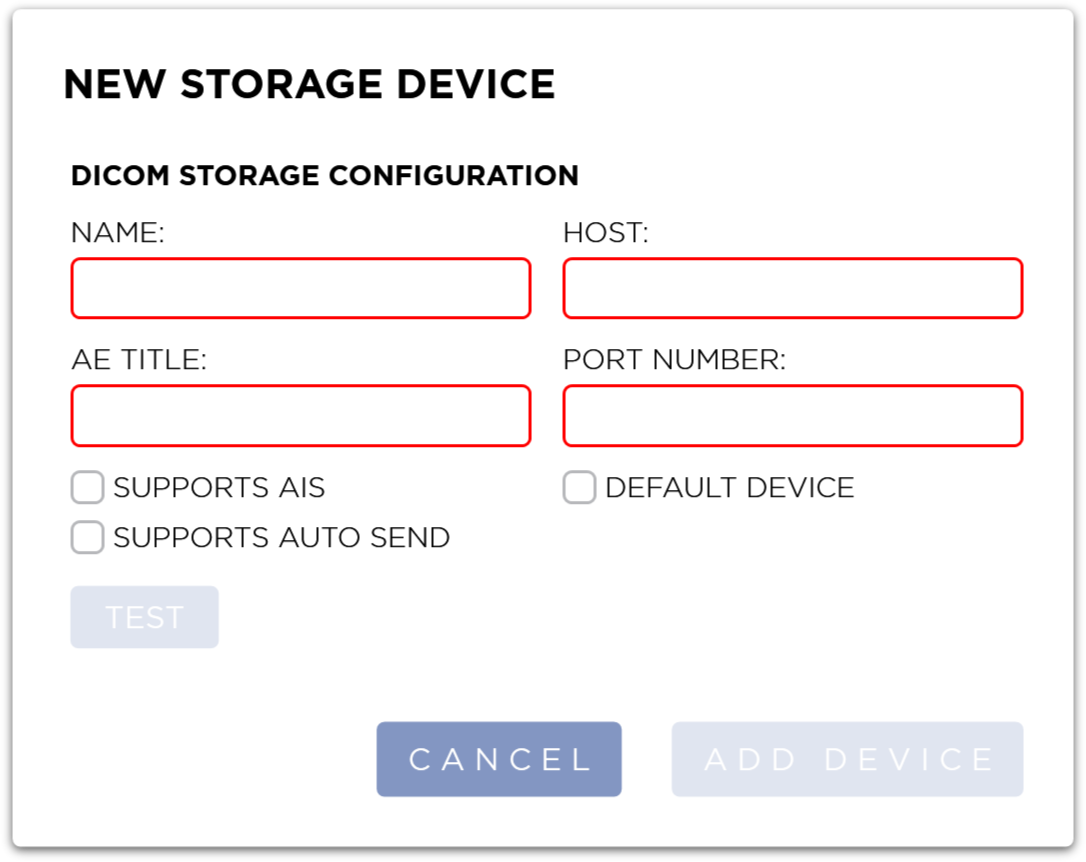

Pressing the Add button will show the New Storage Device dialog.

Enter the DICOM demographics for the device and press the Add Device button to save the device.

note

The Add Device button will only be active once all required fields have been entered.

Pressing the Cancel button will close the dialog and discard any changes.

Required

Name

This is the display name for you're device. This is required.

Host

This is the host name or IP address for the device. This is required.

AE Title

This is the AE Title of the device. This is required.

Port Number

This is the Port number for the device. This is required.

Optional

Supports AIS

If this is an AIS DICOM Server, check the Supports AIS check box.

Supports Auto Send

If you want to automatically send images to this server when a study completes, check the Supports Auto Send check box.

Default Device

To set this as the Default Device, check the Default Device checkbox.

Edit a Device

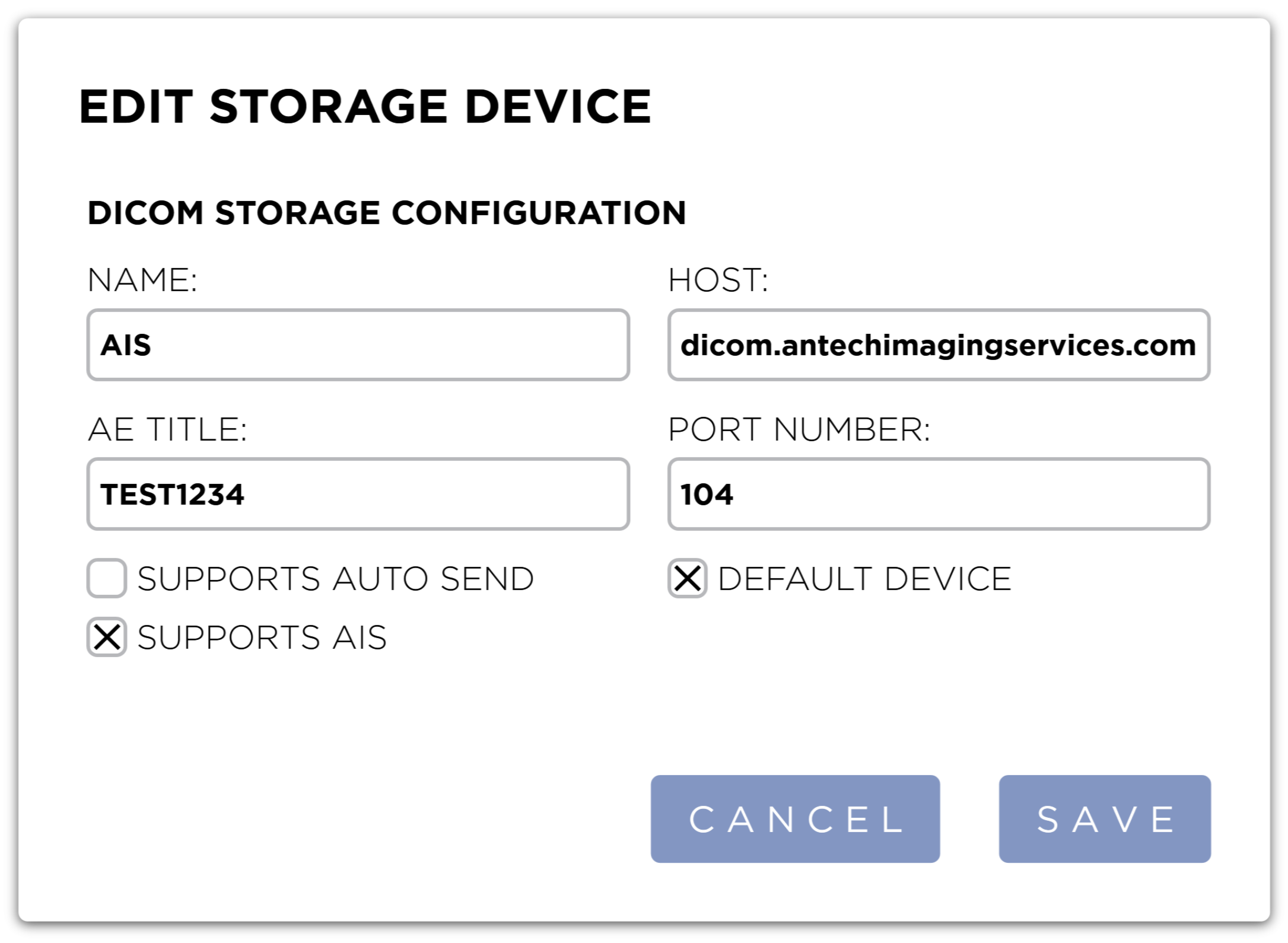

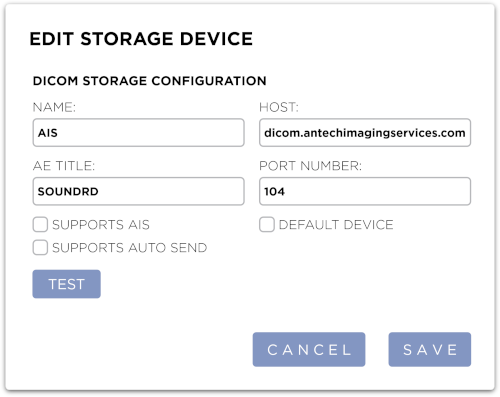

With a device selected, press the Edit button. The Edit Storage Device dialog will be shown.

After making you're changes, pressing the Save button will save you're changes and close the dialog.

Pressing the Cancel button will discard you're changes and close the dialog.

Delete a Device

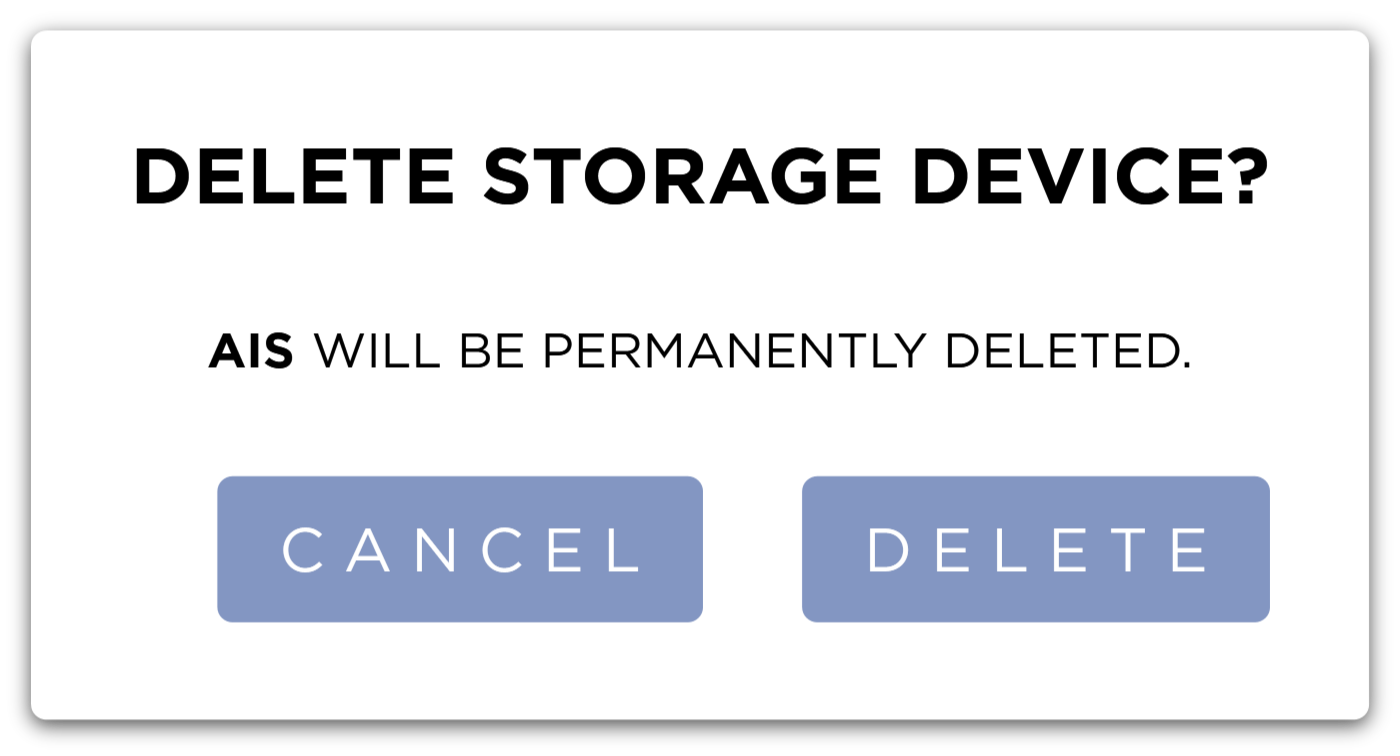

To delete a Device, select the device you wish to delete from the list and press the Delete button. You will be shown a confirmation dialog.

Pressing the Delete button will Delete the device from the system. Pressing the Cancel button will close the dialog.

Ping

To verify IP connectivity with the Device, select the device from the list and press the Ping button. The results will be displayed in a dialog. Press the Close button to dismiss the dialog.

Echo

To verify DICOM connectivity with the Device, select the device from the list and press the Echo button. The results will be displayed in a dialog. Press the Close button to dismiss the dialog.
