HD/HD+

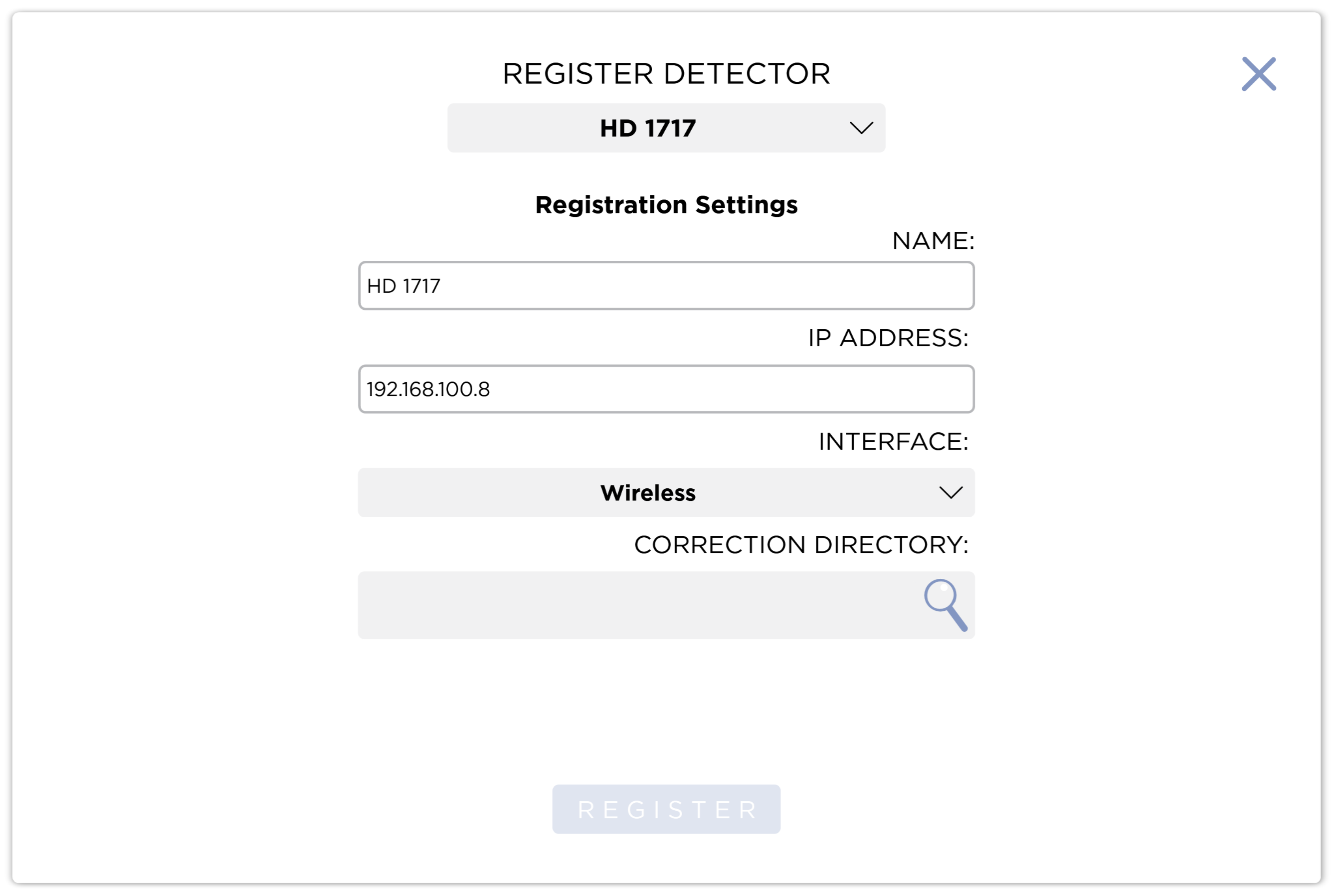

Register Detector Dialog

Name​

This is used to identify the Detector to the users.

IP Address​

This is the IP address of the detector. By default this is set to 192.168.100.8.

Interface​

This is the interface the system will communicate with the detector. By default it is set to Wireless.

info

If there are issues registering detectors, double check this value. HD/HD+ detectors cannot switch between Wired and Wireless modes.

Correction Directory​

This is the directory that contains the defect, gain, and offset files for the detector. This will be supplied by a Sound Tech Support or Installer.

Register​

Press this button to register the detector. This button will be disabled until a Correction Directory has been selected.

note

The detector must be connected and powered on.
