Study Comparison
The Primary Study is loaded into the viewer on the right side of the screen. The Comparison Study is loaded into the left viewer.
The Comparison study is ready-only, it cannot be re-cropped or annotated. Window/Level can be adjusted, but the changes will not be saved.
Loading a Study for Comparison
There are two places where you can load a study for comparison
- From the Main Patient Screen there is a button on the Study tile.
- From the Acquire Review Menu.
Comparison Study Navigation
Users can navigate the study with the controls on the left hand side. The Left (Previous) and Right (Next) arrows will move between images. When the user reaches the first/last image and presses the Left (previous)/ Right (Next) Arrow (respectively) it wraps to the last/first image.

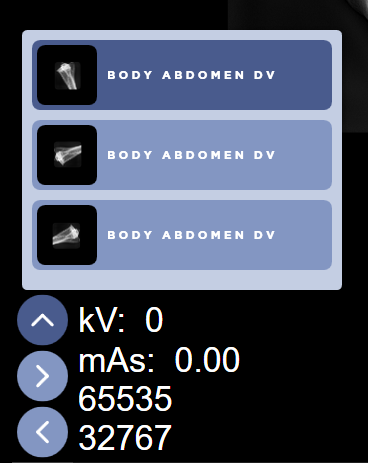

The user can also press the up arrow to show a popup list of images. The user can select an image from that list.
Two Up Mode
When a study has been loaded for comparison, a new icon is show on the Acquire Review Control Panel.
This button will switch between two-up comparison and normal operations.
