Image Orientation

If the image is not in the correct orientation, you can use the Flip and Rotate controls. These controls will perform one operation each time they are pressed.

Rotate Left

Rotate Left Button

Pressing the Rotate Left button rotates the image Counter Clockwise 90 degrees.

Rotate Right

Rotate Right Button

Pressing the Rotate Right button rotates the image Clockwise 90 degrees.

Flip Vertical

Flip Vertical Button

Pressing the Fip Vertical button mirrors the image across the horizontal axis.

Flip Horizontal

Flip Horizontal Button

Pressing the Flip Horizontal button mirrors the image across the vertical axis.

Saving Rotation

Orientation Tool Button

After you have changed the rotation of an image, the Orientation tool button becomes active. Pressing this button will show the Orientation Tool.

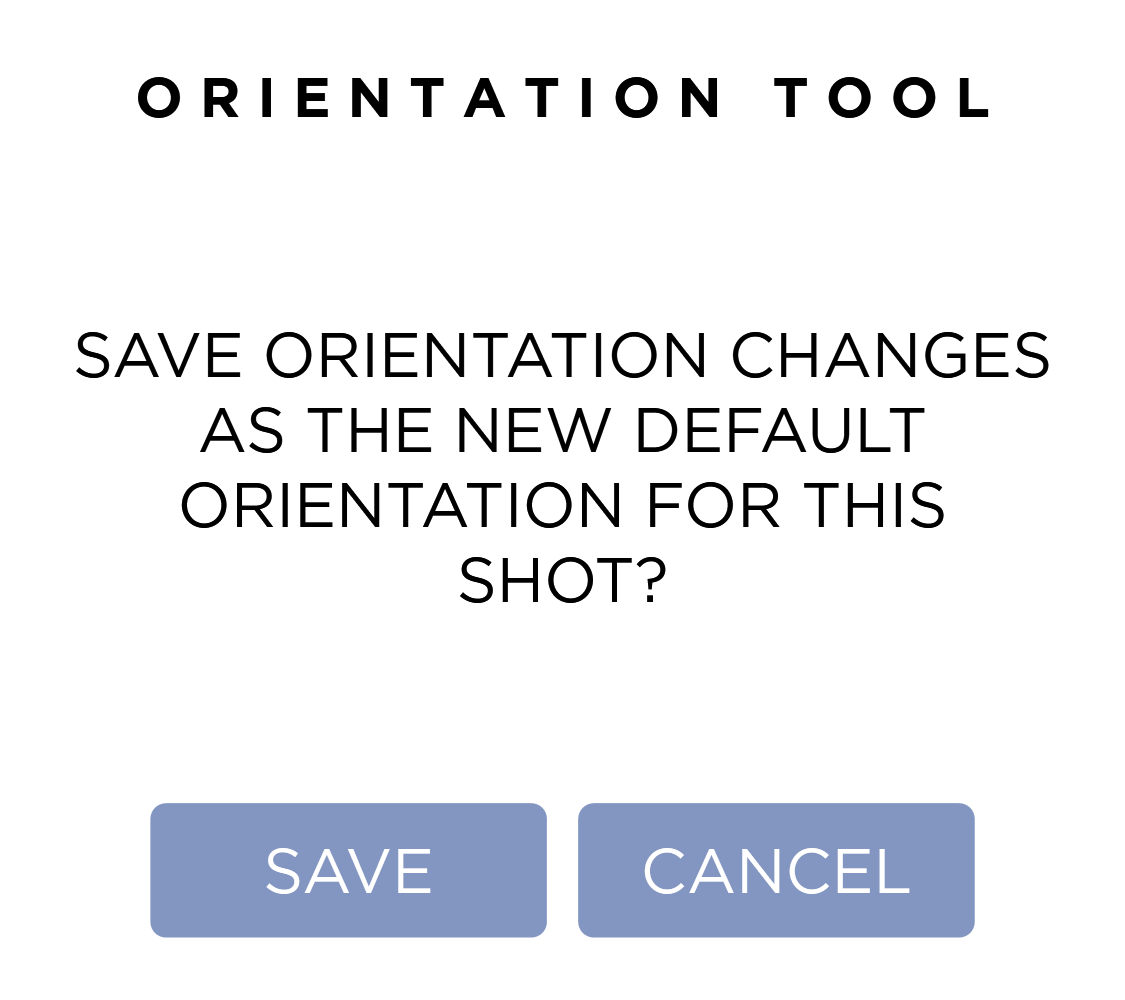

Orientation Tool

Pressing the Save button to save the rotation as the default for the Shot and close the Orientation Tool. The next time the shot is acquired, it will automatically apply the same flips and rotations you have applied to this image. Pressing the cancel button will close the Orientation tool. You can also close the Orientation tool by Pressing the Orientation Tool button again, or by pressing outside the tool.

tip

The Orientation Tool saves the rotation for the Shot at all sizes. A shot's default flips and rotations can be adjusted specifically for each size in the Settings Screen. See the Acq Profiles section in the Settings Screen to edit the settings for all sizes.

info

The default rotation is added in addition to the Detector's Default Rotation.
