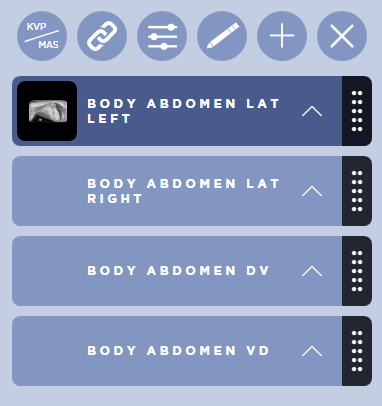

Shot List
Similar to the shot list in the Shot List screen, this is the list of shots for this study. Each shot is labeled with the Region, Anatomy, and View Position of the shot. After an image has been acquired, a thumbnail will be added to the shot to indicate that it has been acquired.

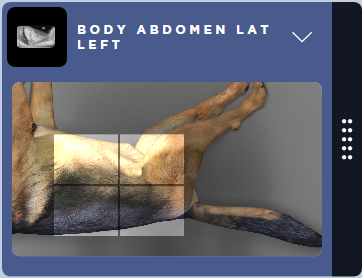

Position Assistant
Many of the shots have a positioning assistant image. To view the image, click the Expand Icon to see it.

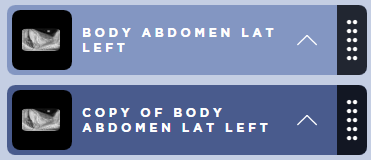

Duplicate Shots
Any shots with duplicated images using the duplicate image button on the annotations toolbar will be prefixed with "Copy of". This only occurs in the acquire screen and not reports.
Add Shots
You can add additional shots to the shot list. Press the Add Shots Button. This will open a sliding panel where you can select a Region, Anatomy and Shot to add to the shot list. You can also add protocols to the shot list here. Press the Next button to close the add shots sliding panel and return to the acquisition screen.
Acquisition is disabled while you are adding shots. It will be re-enabled when you finish adding shots.
Edit Shots
You can edit shots in the shot list to select a different view position. Press the Edit Shot button. This will open a sliding panel where you can select a replacement shot. When you select a replacement, you will see a popup with both the currently selected shot's view position and the view position you have selected to replace it. You can Confirm the change by clicking the OK button or cancel the change by pressing the cancel button. Press the Next button to close the edit shot sliding panel and return to the acquisition screen.
Acquisition is disabled while you are editing shots. It will be re-enabled when you finish editing shots.
Delete Shots
You can delete the selected shot from the shot list. Select the shot you wish to delete and Press the Delete Shot button. This will remove the shot from the shot list.
Only shots that have not been acquired can be deleted. For shots that have been acquired, use the reject button.
Reordering the shot list
To change the order of the shots, simply touch or click and hold on the right side of the desired view and drag it to the desired order in the shot list.
Rejecting an image
If an image you have acquired has motion or was not positioned properly, you can reject the image with the Reject Image button. The reject button will appear when you select a shot with an image or immediately after acquisition. When the button appears after acquisition, pressing the button will reject the image you just acquired.
Pressing the Reject Button will mark the rejected image with a red X across the thumbnail and automatically add a replacement shot below it in the shot list. Rejected images are excluded from export.
You can Undo the rejection by selecting the rejected image and clicking the Accept Button.

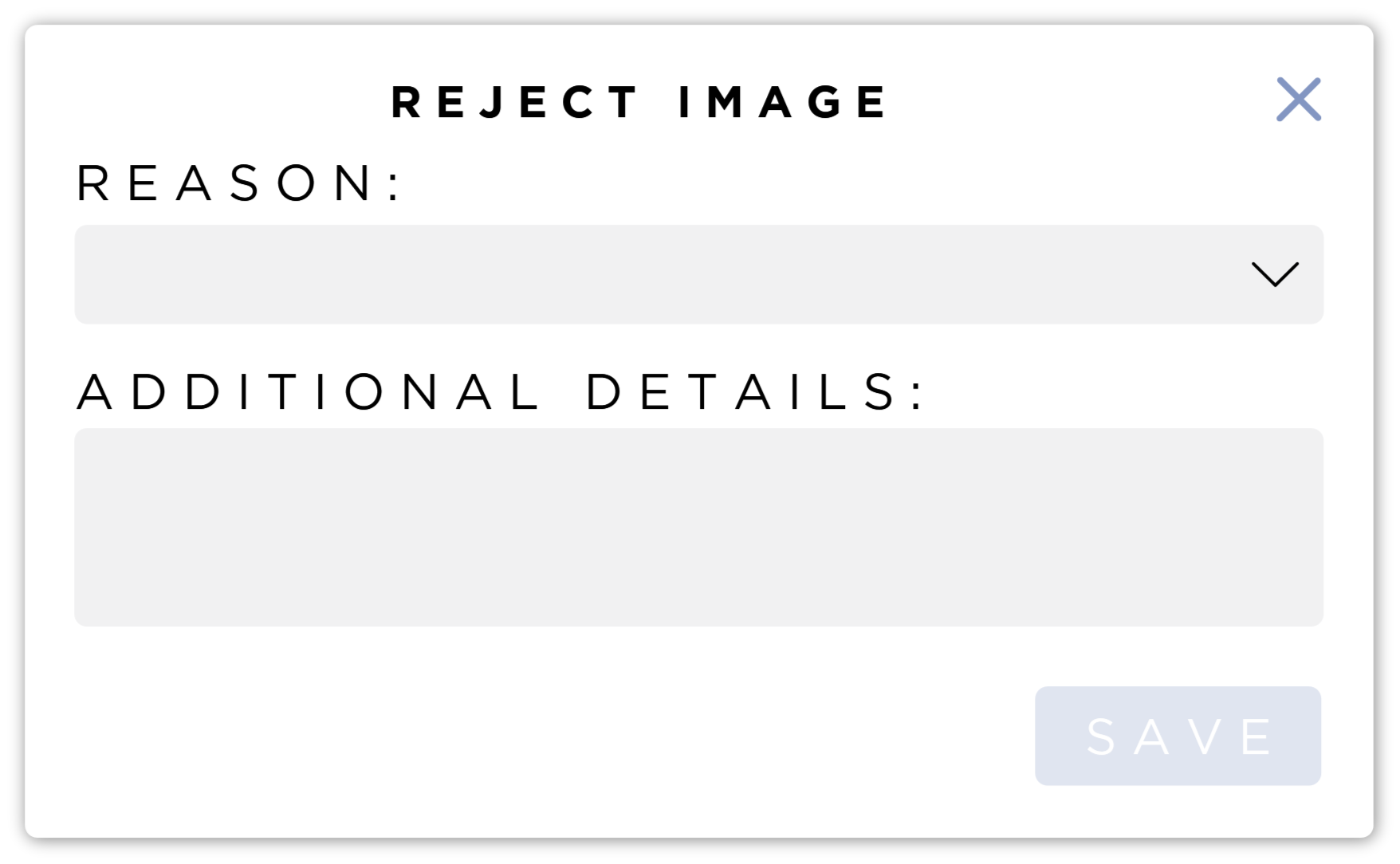

Reject Reason
If the system is configured to require a Reason for the Rejection, you will see the Reject Reason form when you press the Reject Image button.
When this setting is enabled, users will see a popup and must select a reason from the combo box. Users can optionally add Additional Details to give context to the rejection. Press Save so save the reason. To Pressing the X in the top right corner will cancel the rejection.
The Require Image Reject Reason setting can be found in the Settings Screen under Advanced Options.
Reject reasons can enhance the utility of the Reject Report.
