SoundVu HD

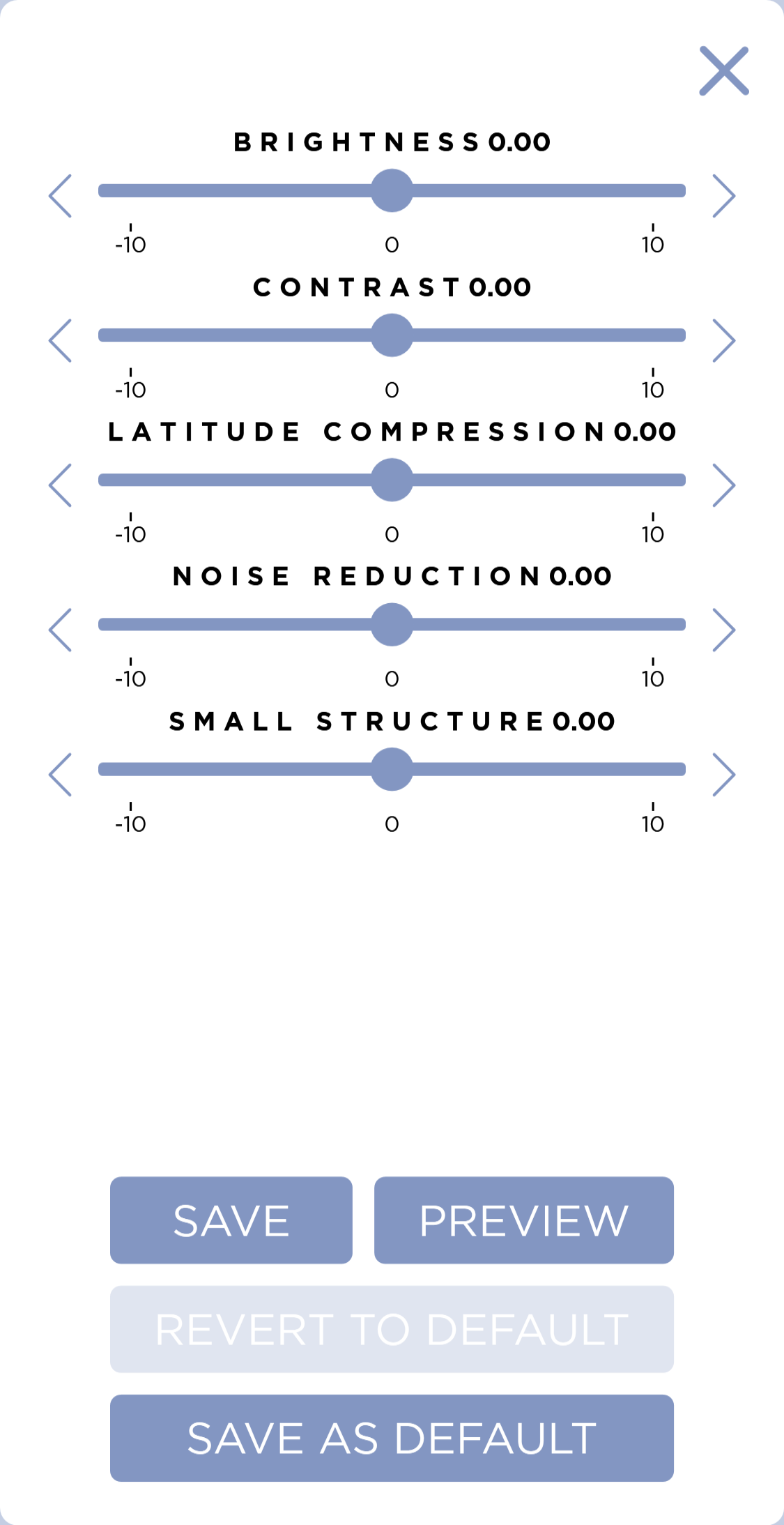

Image Tuning Workbench

There are 5 parameter for you to adjust:

  • Brightness
  • Contrast
  • Latitude Compression
  • Noise Reduction
  • Small Structure

You can adjust the values by dragging the slider left or right, or selecting a value in the dropdown menu. You can also use the Arrows to the left and right of the slider to decrease and increase the value respectively.

Press the Preview button to preview the changes to the image.

Press the Save to save the changes to the current image and close the Workbench.

Press the Revert to Default button to reset the sliders to the Shot's default settings.

Press the Save as Default to save the current settings to the shot as the new default.

To close the Taste Tool without saving changes, press the X button in the top right corner.

info

Revert to Default will be enabled when any of the sliders are not at the shot's default position.

Brightness​

Range -10.0 to 10.0. This controls the overall brightness.

Contrast​

Range -10.0 to 10.0. This controls the overall image contrast.

Latitude Compression​

Range -10.o to 10.0. This controls the ability to visualize both translucent and dense areas simultaneously.

Noise Reduction​

Range -10.0 to 10.0. This controls the suppression of unstructured noise, often apparent in soft tissues or dense areas.

Small Structure​

Range -10.0 to 10.0. This controls the sharpness of finer structures, such as trabecular structures for bones.

info

The Range of each parameter can vary depending on the parameter file loaded and the current value of the other parameters.
